性能
额定功率 |
22.5 W |
光通量 |
1950 lm |
灯泡功率 |
22.5 W |
色坐标 X |
380 |
色坐标 Y |
380 |
设计温度 |
35 °C |
发光效率 |
76 lm/W |
灯座/灯帽底板 |
Green plate |
显色指数(CRI) |
82 |
色温 |
4100 K |
调光 |
Y |
灯泡尺寸 |
T5 |
汞含量 |
1.4 mg |
能量控制
能量消耗(1000 小时) |
25 kWh |
灯泡电流 |
295 mA |

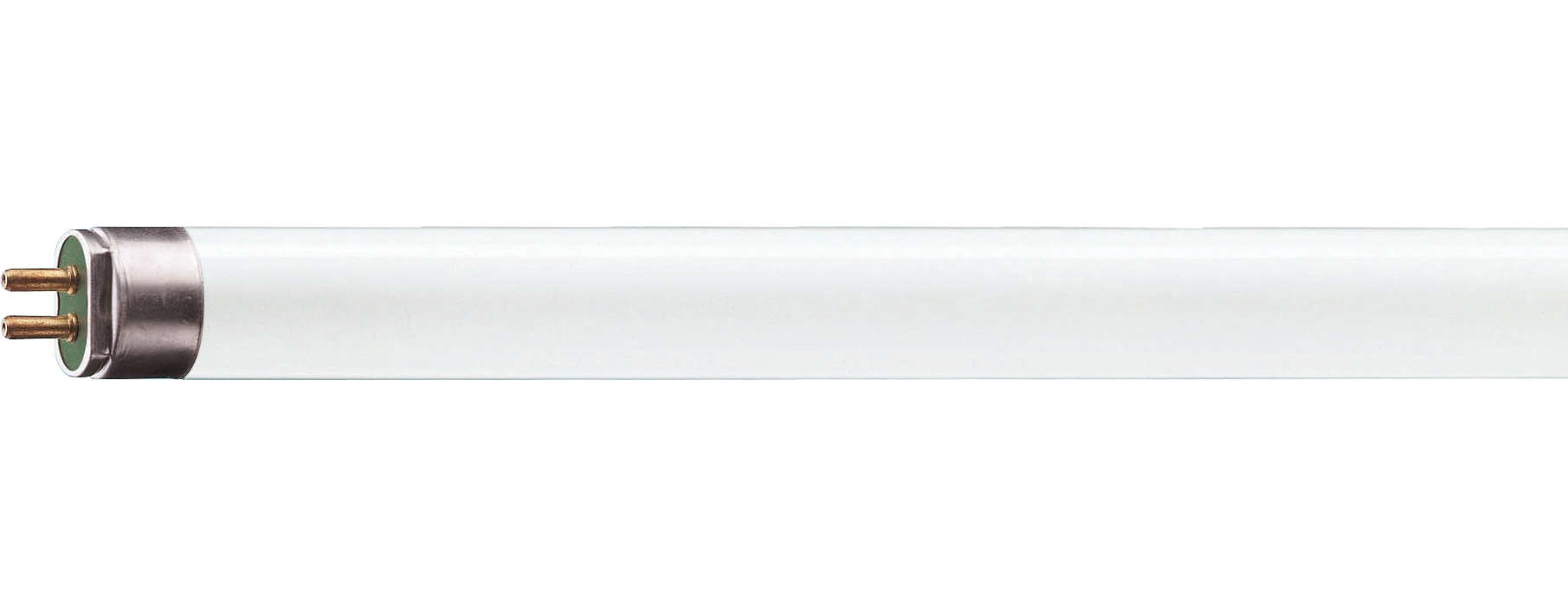

MASTER TL5 HO, 22.5 W, G5, 4100 K, 1950 lm, 54 g
This TL5 lamp (tube diameter 16 mm) offers high light output. The TL5 HO lamp is optimized for installations requiring high light output and offers excellent lumen maintenance and color rendering. Application areas vary from offices and industry to schools and retail environments.
<b>Benefits</b>
- Allows system miniaturization and maximum luminaire design freedom
- Lamp lengths enable easy fitting into ceiling module systems
- Optimized for installations which need high luminous flux
- Virtually constant lumen level with excellent lumen maintenance
- Good color rendering
<b>Features</b>
- 40% thinner than TL-D lamps
- Designed for high llight output and system miniaturization
- Highly efficient 3-band fluorescent coating in combination with precoating
- Specifically designed for operation with electronic gear and wellsuited for dimming
- Maximum light output reached at approximately 35 °C in freeburning position if an electronic driver with cut-off feature is used
- Can be ignited from -15 to +50 °C
<b>Application</b>
- The combination of a compact lamp and high lumen package of the MASTER TL5 HO offers exciting opportunities for architectural lighting and customized solutions
- Offers economic solutions with high-ceiling lighting in shops, industry and department stores
- The high luminous flux gives optimal results in aesthetic pendants and furniture-mounted luminaires in offices, workshops, restaurants and reception areas.
<b>Warnings and Safety</b>
- A lamp breaking is extremely unlikely to have any impact on your health. If a lamp breaks, ventilate the room for 30 minutes and remove the parts, preferably with gloves. Put them in a sealed plastic bag and take it to your local waste facilities for recycling. Do not use a vacuum cleaner.
