音频
| 音质 |
24 bit |
| 频率范围 |
22 - 22000 Hz |
| 采样率 |
44.1 kHz |
技术细节
| 音频输入平衡阻抗 |
20000 Ω |
| 音频输入非平衡阻抗 |
10000 Ω |
| 音频输入总谐波失真(THD) |
0.0045% |
| 音频输入线信号-噪声比(信噪比) |
-98 dB |
| 音频输入动态范围 |
98 dB |
| 音频输出通道串音 |
-100 dB |
| 音频输出阻抗 |
240 Ω |
| 输出信号-噪声比(信噪比) |
-104 dB |
| 音频输出动态范围 |
105 dB |
| 音频输出总谐波失真(THD) |
0.0039% |
麦克风
| 麦克风信噪比 |
-100 dB |
| 麦克风输入阻抗 |
1000 Ω |
| 麦克风可变增益 |
45 dB |
| 麦克风最大输入 |
-2.2 dBu |
| 麦克风动态范围 |
100 dB |
| 麦克风总谐波失真(THD) |
0.0053% |
端口 & 界面
| XLR 音讯连接输入端口 |
Y |
| 接口 |
USB 2.0 |
| 耳机输出端口 |
1 |
| 音频（左、右声道）输出 |
1 |
耳机
| 耳机最大输出 |
-2 dBV |
| 耳机的工作范围 |
32 Ω |
| 耳机动态范围 |
102 dB |
| 耳机信号-噪声比 |
-102 dB |
| 耳机总谐波失真 |
0.0395% |
| 耳机采样率 |
48 kHz |
仪表
| 动态范围 |
97 dB |
| 总谐波失真 |
0.0049% |
| 输入阻抗 |
500000 Ω |
系统要求
| 最低处理器 |
Pentium II 350MHz |
| 最低内存 |
128 MB |
PodCast Factory

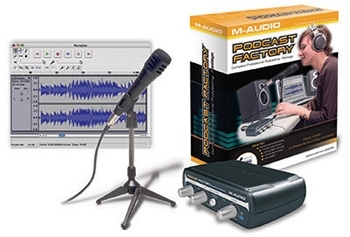

The M-Audio Podcast Factory combines all the hardware and software you need to easily create professional-sounding podcasts. Record your voice in broadcast fidelity. Create sophisticated radio-style productions that integrate speech, music and even sound effects. The included software even processes your MP3 files and automates web publishing for RSS 2.0 feeds.
Designed with the same M-Audio technology used in recording studios from around the world Podcast Factory gives you both the professional sound quality and creative tools to produce stellar podcasts that keep your listeners coming back for more.
Podcast Factory
The Podcast Factory professional audio interface brings your computer both microphone and instrument inputs, plus headphone and stereo outputs—all via a simple USB cable. It can also double as a professional audio interface for most popular music software like Apple GarageBand, Sony Acid, and Magix Music Maker.
M-Audio Broadcast Microphone Included
Use the included microphone with desktop stand to record broadcast-quality speech for professional-sounding podcasts—instruments too.
Editor Software
The package includes software that makes it simple to record and edit basic audio content, then convert it to MP3 files for posting on Web podcast sites.
Ableton Live Lite 4
This special edition of Ableton’s award-winning Live software lets you easily produce more sophisticated shows containing speech, music, sound effects and more. It even lets non-musicians create custom soundtracks for any podcast.
Podifier
Podifier is a simple-to-use application that automates the creation of an RSS feed, the enclosing of one or more MP3 files and the FTP application to upload them to a server.
Features:
- Professional 24-bit/48kHz audio interface with preamp.
- Dynamic broadcast microphone with desk stand.
- Microphone input channel with gain control and signal LEDs.
- Switchable instrument/line input.
- Stereo headphone output.
- Stereo output jacks.
- Level control for headphones and main outputs.
- USB bus-powered for mobile operation.
- USB class-compliant (OS X 10.3.5 and higher) for plug-and-play operation.
- Includes software for reco rding and editing, adding music and sound effects, and Web posting with RSS feed.
- Includes music loops from a wide variety of genres.
- Easy to connect and use.
- Hardware compatible with most other music software.
