音频
| 音质 |
24 bit |
| 频率范围 |
20 - 40000 Hz |
| 采样率 |
48 kHz |
技术细节
| 音频输入平衡阻抗 |
20000 Ω |
| 音频输入非平衡阻抗 |
10000 Ω |
| 音频输入总谐波失真(THD) |
0.00243% |
| 音频输入线信号-噪声比(信噪比) |
-104 dB |
| 音频输入动态范围 |
104 dB |
| 音频输出口最大输出 |
10 dBV |
| 音频输出通道串音 |
-109 dB |
| 音频输出阻抗 |
300 Ω |
| 输出信号-噪声比(信噪比) |
-110 dB |
| 音频输出动态范围 |
110 dB |
| 音频输出总谐波失真(THD) |
0.00205% |
| 音频输入最大输入 |
7.8 dBV |
麦克风
| 麦克风信噪比 |
-104 dB |
| 麦克风输入阻抗 |
3400 Ω |
| 麦克风可变增益 |
55 dB |
| 麦克风最大输入 |
-3dBu |
| 麦克风动态范围 |
104 dB |
| 麦克风总谐波失真(THD) |
0.00188% |
端口 & 界面
| XLR 音讯连接输入端口 |
Y |
| 接口 |
FireWire |
| 耳机输出端口 |
2 |
| 数字音频光学输出 |
1 |
仪表
| 最大输入水平 |
14 dBV |
| 动态范围 |
100 dB |
| 总谐波失真 |
0.00243% |
| 输入阻抗 |
560000 Ω |
耳机
| 耳机最大输出 |
-2.9 dBV |
| 耳机的工作范围 |
24 Ω |
| 耳机动态范围 |
100 dB |
| 耳机信号-噪声比 |
-100 dB |
| 耳机总谐波失真 |
0.03% |
| 耳机采样率 |
48 kHz |
系统要求
| 最低处理器 |
Intel Pentium III 800MHz |
| 最低内存 |
512 MB |

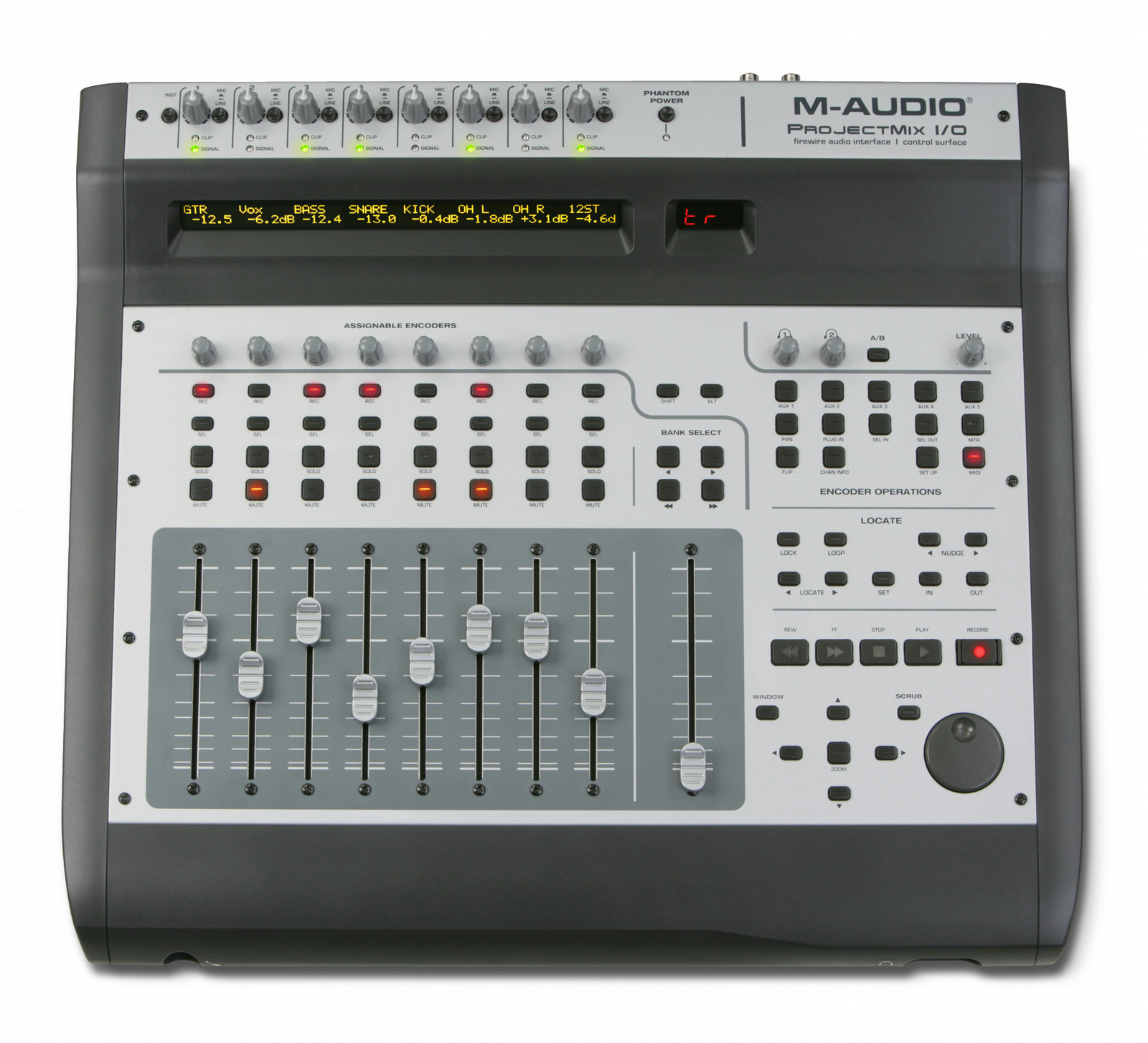

Control Surface with Motorized Faders and 18 x 14 Audio Interface
Today, more professional music is produced at home than ever before - and the new ProjectMix I/O delivers what you need to take your computer-based studio and productions to the next level. Seamless integration with all major DAW software. The ability to record directly into industry-standard Pro Tools sessions. Faders so you can feel the mix with your fingertips instead of dragging a mouse. On-board display of critical parameters for intuitive operation. Motorized control to craft more accurate mixes. And professional multi-channel I/O including mic/instrument preamps, Lightpipe and S/PDIF. ProjectMix I/O is the universal solution that combines the best of the hardware and software worlds for a new standard in streamlined production. Compatible with Pro Tools M-Powered 7, Ableton Live 5, Logic, Cubase, Digital Performer and SONAR.
