联网
| 蓝牙模式 |
AVRCP, A2DP |
| 蓝牙 |
Y |
| 无线局域网连接 |
Y |
无线电
| 支持波段 |
AM, FM |
| 预设电台数量 |
40 |
| 网上电台 |
Y |
技术细节
| x.v.Color支持 |
Y |
| 支援色深技术 |
Y |
| 图形用户界面（GUI） |
Y |
| 与苹果产品对接兼容性 |
Not supported |
| 音频回传通道（ARC） |
Y |
| 可拆除电源线，存放方便 |
Y |
| 睡眠定时器 |
Y |
| 均衡器 |
Y |
| 手持式遥控器 |
Y |
| 双功放 |
Y |
| 环绕声模式数量 |
12 |
| AirPlay |
Y |
| 功放 |
Y |
| 移动高畫質連結技术（MHL） |
Y |
音频
| 频率范围 |
20 - 20000 Hz |
| 支持 4Ω 扬声器 |
Y |
| 动态功率每声道（4Ohm） |
220 W |
| 每通道输出功率(1KHz@6 Ohm) |
185 W |
| 每通道输出功率(1KHz@8 Ohm) |
135 W |
输出
| 耳机输出端口 |
1 |
| 多声道音频输出型 |
Terminals |
| 遥控器（IR）输出 |
1 |
输入
| 分量视频(YPbPr/YCbCr)输入 |
2 |
| 数字音频光纤入 |
3 |
| 遥控器（IR）输入 |
2 |
| HDMI输入 |
8 |
| 数字音频同轴i输入 |
2 |
| USB 端口数量 |
1 |
| 复合视频 |
2 |
端口 & 界面
| 12V触发器 |
Y |
| 12V触发端口数量 |
1 |
| 唱机输入（RCA） |
1 |
另外
| 以太网连接器 |
Y |
| RS-232接口 |
1 |
| 以太网路(RJ-45)连接接口数量 |
1 |
Class D, 9.2, DTS:X, Dolby Atmos, DTS-HD, 3D, HDR, Wi-Fi, Bluetooth 4.1, HDMI, USB, AV, FM/AM, 435 x 185 x 441 mm, 15300 g, black
<b>Concentrated home cinema expertise, the latest streaming technology and superb sound</b>

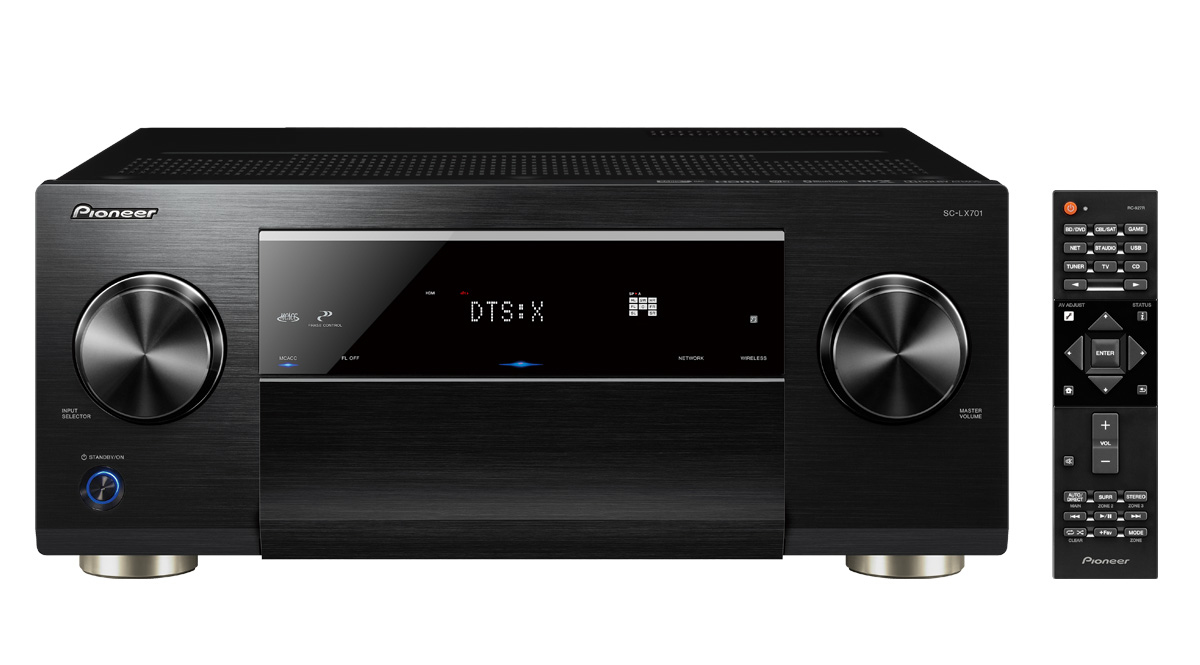

Conventional wisdom says that AV receivers are no more than average stereo amplifiers – but this is not always true. While the Pioneer SC-LX 701 can easily render the most intense dynamics of modern cinema soundtracks on up to nine channels, it transforms itself into a cultivated hi-fi amp with a natural sound when it comes to music. For Pioneer’s own Direct Power HD output stage technology with its ultra-short signal paths, power and aesthetics are no contradiction. Audiophile quality also defines the SABRE32 D/A converter from ESS used for all channels. Those who want to truly put its tremendous dynamics and high linearity to the test can, in addition to multi-channel premium movie sound (Dolby Atmos, DTS:X), also access super-high-resolution studio master music files with a few taps in the control app. This is because the SC-LX 701 includes a full-fledged, opulently equipped streamer that also plays back high-resolution files from local NAS servers at 24bit/192kHz and quad-rate DSD (11.2MHz). Full CD resolution is promised by the integrated music services Tidal and Deezer along with Spotify, offering full access to over 20 million titles for their subscribers. Bluetooth, dual-band WiFi and Airplay are also available for everyday convenience and the soothing feeling of always being able to offer the right standard – complemented by Google Cast and the high-performance, brand-neutral, FireConnect multi-room standard after a free update.
