重量和尺寸
后置扬声器厚度 |
217 mm |
后置扬声器宽度 |
148 mm |
后方扬声器重量 |
3400 g |
主机重量 |
3500 g |
主机身尺寸(宽 x 深 x 高) |
290 x 333 x 98 mm |
后置扬声器高度 |
263 mm |
无线电
网上电台 |
Y |
包含相关数据库调谐器 |
Y |
AM波段范围 |
530 - 1710 kHz |
调谐器类型 |
Digital |
预设电台数量 |
40 |
支持波段 |
FM, AM |
FM波段 |
87.5 - 107.9 MHz |
人体工程学
低音调整 |
Y |
高音调整 |
Y |
集成时钟 |
Y |
均衡器 |
Y |
综合计时器 |
Y |
固件可升级 |
Y |
睡眠定时器 |
Y |
报警功能 |
Y |
自动关闭电源 |
Y |
多媒体
音频数字/模拟转换器 |
192kHz/24-bit |
频率范围 |
70 - 40000 Hz |
Tweeter diameter |
25 mm |
Woofer diameter |
120 mm |
阻抗 |
4 Ω |
总谐波失真 |
10% |
功放 |
Y |
端口 & 界面
超重低音输出 |
Y |
Line-out |
Y |
Line-in |
Y |
FM天线端口 |
Y |
耳机输出端口 |
1 |
USB端口 |
Y |
与苹果产品对接兼容性 |
Not supported |
蓝牙模式 |
HOGP, HID, AVCTP, A2DP |
蓝牙 |
Y |
蓝牙版本 |
4.1 |
AirPlay |
Y |
数字音频光纤入 |
1 |
唱机输入(RCA) |
1 |
性能
USB直接播放 |
Y |
MP3播放 |
Y |
光盘类型支持 |
CD, CD-R, CD-RW |
集成读卡器 |
N |
高保真 |
Y |
播放光盘格式 |
CD audio |
设计
录音机 |
N |
Disc loading type |
Tray disc loader |
光盘 (CD) 播放器 |
Y |
类型 |
Micro set |
联网
无线局域网类型 |
IEEE 802.11b, IEEE 802.11a, IEEE 802.11n, IEEE 802.11g |
无线局域网连接 |
Y |
以太网的数据传输率 |
100, 10 Mbit/s |
技术细节
包括电源线 |
Y |
频段 |
2.4 GHz |
高频扬声器 |
Y |

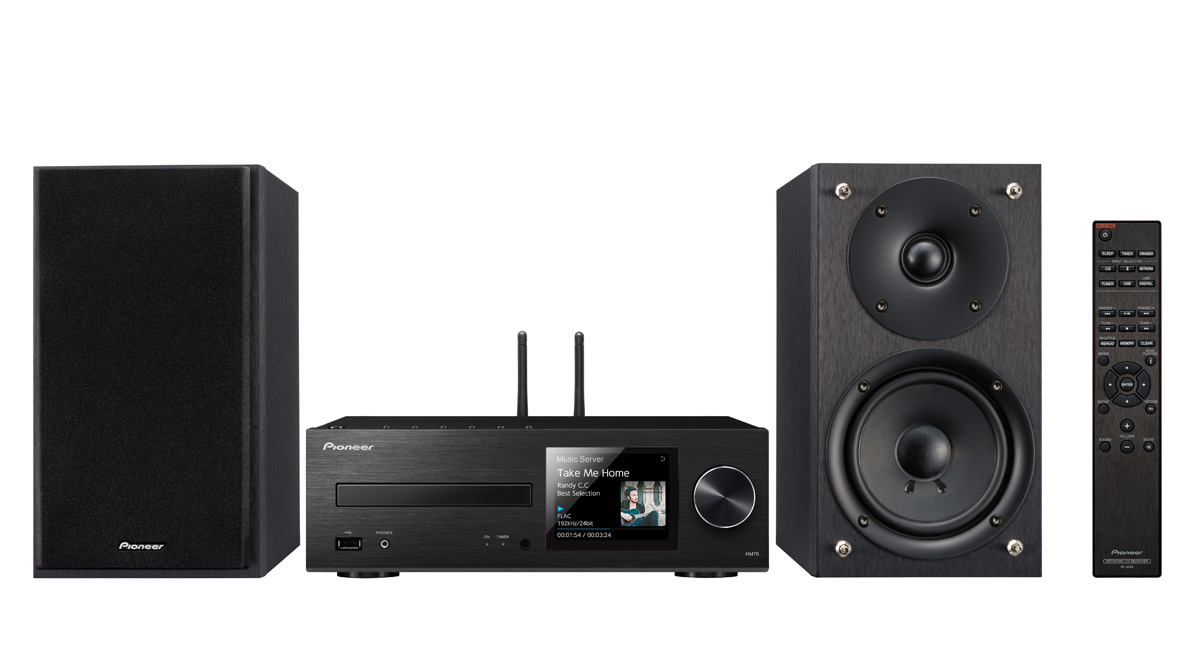

50+50 W, Class D, FM (RDS), CD/CD-R/CD-RW, 192kHz/24-bit, 2x USB, 3.5 mm, Ethernet, Bluetooth, Wi-Fi, 40W, Black
<b>Classy sound and uncompromising features</b>
By choosing this compact music system you definitely make the right decision. On the one hand you will be delighted by the balanced sound of the supplied two-way boxes right away. On the other hand you will always be amazed at how versatile and intuitive the network CD receiver of the X-HM 76 gives you access to your favourite music. Its streaming section is richly equipped for every facet of the modern, digital music world. In addition to free Internet Radio it also supports streaming services that provide you with free access to tens of millions of tracks for a small monthly fee. Such as Spotify, Deezer and Tidal for instance. Audiophile music lovers can download albums in hi-res quality, even in the DSD SACD audio format and stream them via the network over the X-HM 76. The carefully designed speakers of the X-HM 76 and its Class D amplifier with 2x50 watts also sound good with MP3. And on top of it, it also tolerates and rewards even higher quality inputs. And as if its opulent streaming talents were not impressive enough already, the system will still add even more capabilities – via free firmware updates. Google Cast and FireConnect will soon become available in the network receiver this way. The former will be connecting the system to numerous smart phone and tablet apps, while the latter will enable highly convenient multi-room networks. Naturally the X-HM 76 D already comes with Airplay and Bluetooth for fast smart phone connections along with integrated dual-band Wi-Fi – after all, LAN cables are not always available.
