端口 & 界面
| 红外数据端口 |
Y |
| DVI端口 |
N |
| 以太网的数据传输率 |
10, 100 Mbit/s |
| RS - 232接口 |
Y |
| USB版本 |
2.0 |
| HDMI端口数量 |
4 |
| DisplayPort 数量 |
4 |
| USB 端口数量 |
1 |
性能
| 可支持的Linux操作系统 |
Y |
| 图片和图片 |
Y |
| HDCP |
Y |
| 可支持的Mac操作系统 |
Y |
显示器
| 有效显示区域（宽×高） |
1860.5 x 1046.5 mm |
| HD 类型 |
4K Ultra HD |
| 原机长宽比 |
16:9 |
| 显示类型 |
LCD |
另外
| 以太网路(RJ-45)连接接口数量 |
1 |
| 以太网连接器 |
Y |
213.36 cm (84 ") , 16:9, 500 nits, LED, 5ms, 120 Hz, 178/178, 1840 x 2160, DisplayPort, HDMI, Ethernet, USB 2.0, IR, RS-232, IR 6 point touch
Displays

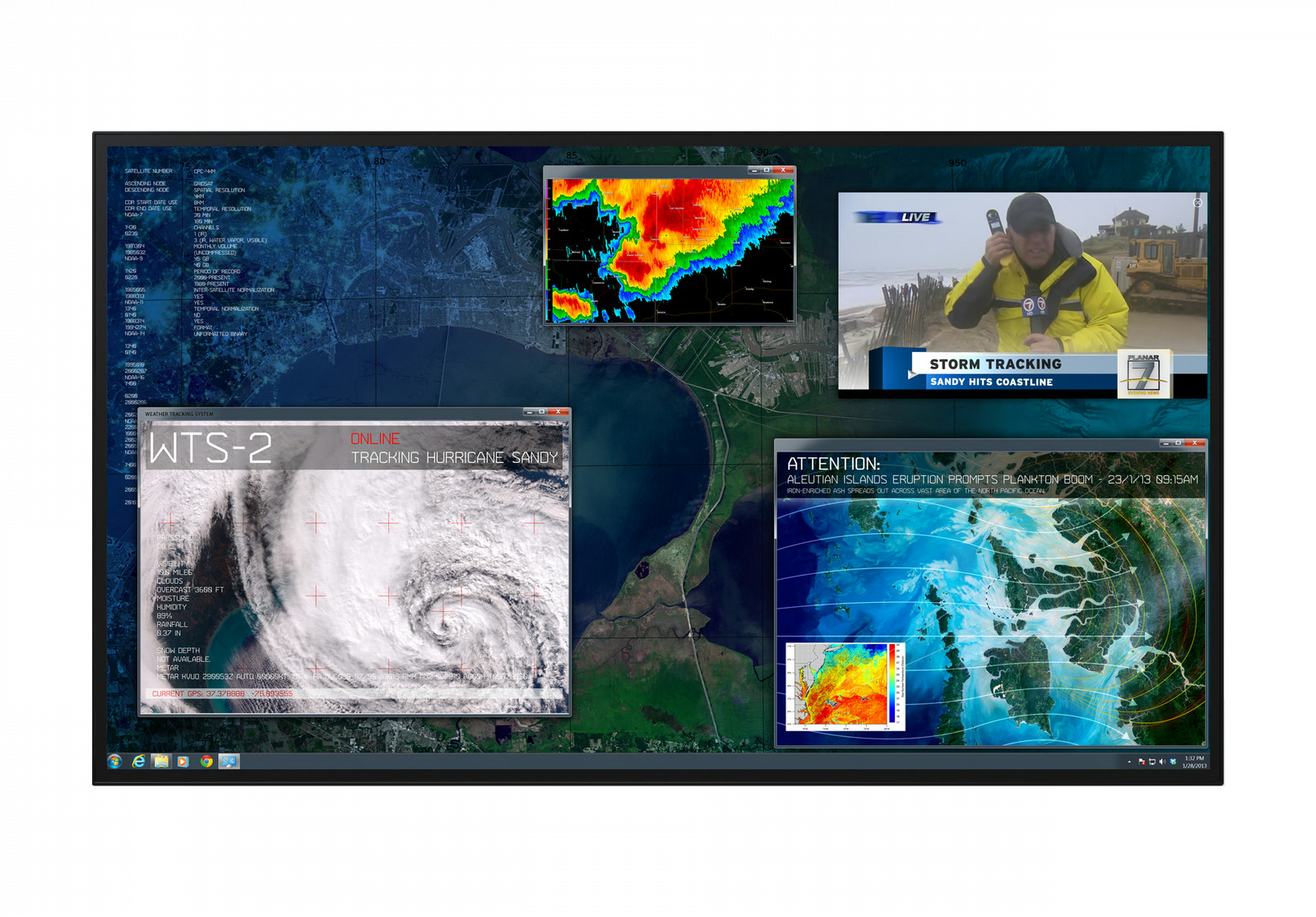

Planar® UltraRes™ Series is a family of 84" Ultra HD (3840 x 2160) professional LCD displays that produce resolution and picture quality not before seen in large format LCD displays. With a native 4K resolution, Planar UltraRes Series has four times the resolution and pixel density of comparably-sized full HD displays. When displaying ultra HD content, Planar UltraRes Series delivers clarity and detail that appears sharp even at close viewing distances - no detail is missed.
Superior 4K Clarity for Professional Applications
Designed for resolution-rich commercial applications, Planar UltraRes Series displays deliver the image quality, connectivity, industrial design and configuration options demanded by applications requiring ultra high resolution display technology. The large screen area and high pixel density of Planar UltraRes Series are ideal for displaying and viewing the highest quality, resolution-rich video and still images.
Configurable to your Environment
Planar UltraRes Series is offered in three base models designed to meet different commercial needs, including the UR8450-3D, which can move seamlessly between 2D and passive glasses, continous 3D. With the addition of the Planar Profile™ Tiling Kit, two or more Planar UltraRes Series displays can be tiled horizontally for a compelling multi-display surface.
4K Touch Experience
Planar UltraRes Series is available with the latest in multi-user, multi-touch technology. Planar UltraRes Touch enables 6 simultaneous points of touch with pinpoint accuracy and support for gesture applications across the most popular operating systems. The displays incorporate Planar's ERO™ optically-bonded, low-friction protective glass which provides increased ruggedness and optical performance for applications in public spaces or interactive touch
