另外
| 连接方式 |
Wired |
| 以太网路(RJ-45)连接接口数量 |
1 |
| 以太网连接器 |
Y |
| 数据传输率（最大） |
100 Mbit/s |

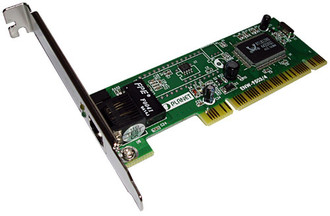

ENW-9504 - 10/100Base-TX PCI, Full Duplex, IEEE 802.3 CSMA/CD
The PLANET ENW-9504 is a 10/100Mbps based 32-bit Peripheral Component Interconnect (PCI) Local Bus Ethernet Adapter designed to address high-performance system application requirements. The bus-master architecture provides high data throughput in the system and low utilization of CPU and system bus. The adapter provides Auto-Negotiation feature that automatically detects and determines the optimal inter-operation mode with other devices. The ENW-9504 supports both 10Mbps and 100Mbps data rates with the UTP-CAT5 or STP cable. It also provides LED indicators for quick monitoring of busy, link collision and speed indication. Furthermore, the ENW-9504 can be operated in Full-Duplex mode.
<b>Key Features</b>
- Complies with IEEE 802.3 CSMA/CD, 100Base-TX, and 10Base-T standard
- Complies with PCI local bus specification (Revision 2.2)
- High-performance Bus Master architecture with DMA Buffer Management Unit
- 3-in-1 controller chip supports early-interrupt on transmission in order to increase the performance
- One RJ-45 for 100Base-TX and 10Base-T, Auto-Negotiation
- Provides Full-Duplex Ethernet operation for both 10Base-T and 100Base-TX expanding the bandwidth up to 20/200Mbps
- ACPI 2.0, WFM 2.0 (Wired for Management) supported
- Supports for most popular NOS:
ODI Driver for NetWare 3.x, 4.x, 5.x, NDIS Driver for LAN Manager,Microsoft
Windows 95/98/98SE/Me/NT/2000/XP/Vista/7, Windows for Workgroup,Packet driver
for TCP/IP, SCO Unix 4.x, 5.x, LANtastic
