联网
| 以太网的数据传输率 |
10, 100, 1000 Mbit/s |
另外
| 数据传输率（最大） |
1000 Mbit/s |
| 连接方式 |
Wired |
| 以太网路(RJ-45)连接接口数量 |
1 |
| 以太网连接器 |
Y |

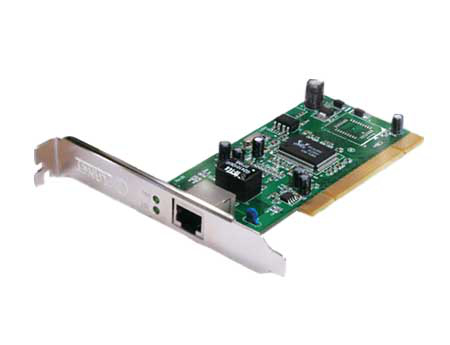

ENW-9605 - 32-Bit PCI Gigabit Ethernet(without BootROM socket), 33/66MHz, Auto MDI/MDI-X, WOL, FIFO, 52g
Gigabit Ethernet is the perfect solution for one of the major requirements of today's Local Area Networks: improving communication speed. With throughput up to ten times that of existing 100Base-TX solutions, using the PLANET ENW-9605 to connect your servers and workstations guarantees extremely high throughput and excellent signal quality.
The ENW-9605 is a 10/100/1000Mbps 32bit Peripheral Component Interconnect (PCI) Local Bus Ethernet adapter designed to address high-performance system application requirements. The Bus-Master architecture provides very high data throughput as it runs in the 32-bit PCI bus of the server's mainboard rather than waiting on the CPU.
The ENW-9605 supports both current motherboards (32-bit/33MHz PCI) and also the new PCI interface (32-bit/66MHz) and operating systems of the next generation, future-proofing your investment. Lower TCO (Total Cost of Ownership) and with increased performance, the ENW-9605 is now the choice of your network data server or just right for your powerful desktop PCs.
<b>Key Features</b>
- Compliant with PCI 2.2 specifications, 32bit, 33/66MHz
- Supports full wire-speed Gigabit Ethernet rate
- 10/100/1000Mbps Auto-Negotiation for optimal connection
- Supports Auto MDI/MDI-X to swap the transmission and receipt
- Supports WOL (Wake On Lan) function
- Transmit/Receive FIFO (8K/64K) support
