数据传输
| MAC 地址表 |
2048 entries |
| 存储转发 |
Y |
| 交换容量 |
1 Gbit/s |
| 吞吐量 |
0.744 Mpps |
环境条件
| 散热 |
8.8 BTU/h |
| 运行湿度范围(H-H) |
5 - 95% |
| 储存温度范围 (T-T) |
-10 - 70 °C |
| 储存相对湿度范围（H - H） |
5 - 95% |
设计
| 外壳材料 |
Metal |
| 墙壁支架 |
Y |
| 外壳设计 |
Freestanding |
| 液晶显示器指示灯 |
Y |
| 认证 |
FCC, CE |
| 机架安装 |
N |
联网
| 自动 MDI / MDI - X 检测功能 |
Y |
| 支持 MAC 地址自动学习（auto-learning）功能 |
Y |
| 支持 MAC 地址自动年龄更新（auto-aging）功能 |
Y |
| 网络标准 |
IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| 流量控制支持 |
Y |
| 10G支持 |
N |
| 全双工传输 |
Y |
端口 & 界面
| 基本交换 RJ-45 以太网端口数量 |
5 |
| DC-IN插口 |
Y |
| 基本交换 RJ-45 以太网端口类型 |
Gigabit Ethernet (10/100/1000) |
| 以太网铜缆技术 |
100BASE-TX, 1000BASE-T, 10BASE-T |
| 千兆以太网(铜)端口数量 |
5 |
能量控制
| 输出电流 |
1 A |
| 输出电压 |
5 V |
| 功耗（最大） |
2.6 W |
性能
| 即插即用 |
Y |
| Auto-negotiation 自动协商功能 |
Y |
重量和尺寸
| 深度 |
86 mm |
| 重量 |
306 g |
| 宽度 |
155 mm |
| 高度 |
26 mm |
另外
| 包括 AC 适配器 |
Y |
| 运行温度范围（T - T） |
0 - 50 °C |
| 产品色彩 |
Black |
| 开/关切换钮 |
Y |
5 x 10/100Mbps RJ-45
High-speed 10/100Mbps Workgroup Switch

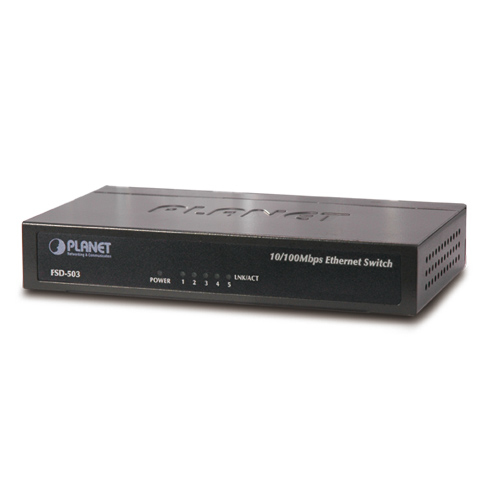

PLANET Fast Ethernet Switch FSD-503 provides business and home users with a cost-effective integrated system of small-office / home-office networking. It is with compact-sized metal case design and just right for the network of 10 to 50 users.
Stable Fast Ethernet Switch Performance
The FSD-503 also supports Store-and-Forward forwarding scheme to ensure low latency and high data integrity. The high performance throughput (filtering / forwarding rate: 14,880 packets per second in 10Mbps, and 148,800 packets per second in 100Mbps) and built-in packet buffer help the FSD-503 to boost bandwidth, eliminate unnecessary traffic, and relieve congestion on your critical server path. With an intelligent address recognition algorithm, the FSD-503 could recognize up to a 2K different MAC addresses and provide 1Gbps switching capacity, which makes the FSD-503 the best in wire-speed packet transfer performance without risk of packet loss.
Flexible Desktop Size Design
The FSD-503 is a fancy-shaped standard metal model that nicely fits in a space-limited environment. With concepts of "easy to install and use", "compact sized design", and "simple troubleshooting", the FSD-503 provides cost-conscious business and home users with a flexible yet cost-effective SOHO / Home networking.
