数据传输
| MAC 地址表 |
2048 entries |
| 存储转发 |
Y |
| 支持数据传输率 |
10, 100 Mbps |
| 吞吐量 |
1.19 Mpps |
端口 & 界面
| Express卡插槽 |
N |
| 基本交换 RJ-45 以太网端口数量 |
8 |
| 以太网铜缆技术 |
100BASE-TX, 10BASE-T |
设计
| 外壳材料 |
Metal |
| 液晶显示器指示灯 |
Y |
| 认证 |
FCC Part 15 Class A CE |
联网
| 自动 MDI / MDI - X 检测功能 |
Y |
| 网络标准 |
IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| 流量控制支持 |
Y |
| 10G支持 |
N |
| 全双工传输 |
Y |
其他功能
| 以太网的数据传输率 |
10, 100 Mbit/s |
| 安装端口 |
8 |
| 电源需求 |
12VDC |
| 无线局域网连接 |
N |
能量控制
| 功耗（一般操作） |
4.3 W |
| 输入电流 |
0.5 A |
环境条件
| 运行湿度范围(H-H) |
5 - 90% |
| 储存温度范围 (T-T) |
-10 - 70 °C |
| 储存相对湿度范围（H - H） |
5 - 90% |
重量和尺寸
| 深度 |
80 mm |
| 重量 |
325 g |
| 宽度 |
160 mm |
| 高度 |
28 mm |
另外
| 产品色彩 |
Black |
| 以太网连接器 |
Y |
| 运行温度范围（T - T） |
0 - 50 °C |
| 连接方式 |
Wired |
8 x RJ-45 Ports, 10/100Mb/s, MAC 2K, LED, 4.3W, 325g

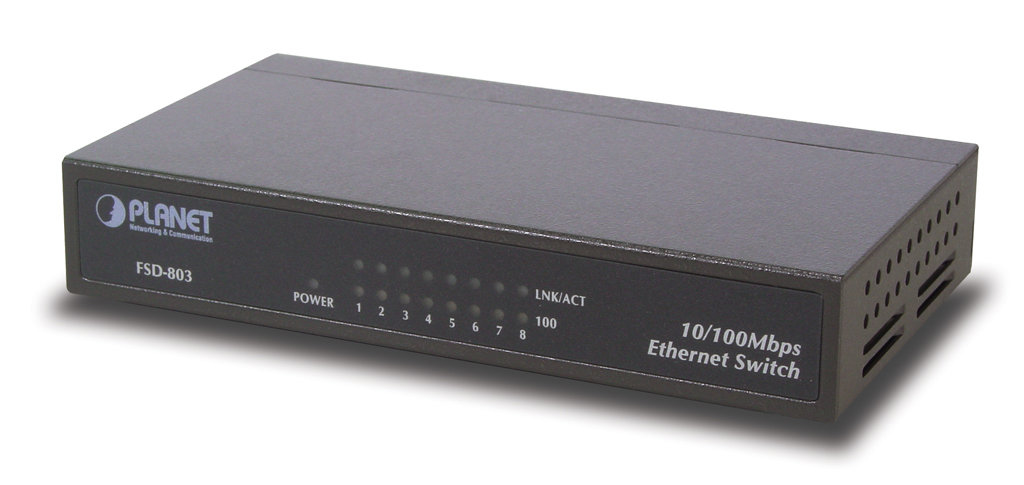

PLANET Fast Ethernet Switch FSD-803 provides business and home users a cost-effective integrated system of small-office / home-office networking. It is with compact-sized metal design and just right for the network of 10 to 50 users.
The FSD-803 is a highly reliable network switch ideal for bridging Ethernet to Fast Ethernet workgroups or networks. It has 2K MAC Address table and provides 448K bits buffer memory. The wire-speed packets transfer capability is provided to avoid packet loss. All RJ-45 copper interfaces in the FSD-803 support 10/100Mbps Auto-Negotiation for optimal speed detection through RJ-45 Category 5 or 5e cables. It also supports Auto-MDI/MDI-X that can detect the type of connection to any Ethernet device without requiring special straight or crossover cables. Furthermore, the Flow Control function by the FSD-803 supports routers and Servers to directly connect to it for fast and reliable data transfer.
To segment the network and ease the network traffic, the 8-Port 10/100Mbps Switch is the ideal backbone for SOHO switched networks. Moreover, for simple troubleshooting, the FSD-803 provides array LED indicators so the network status can be monitored at a glance.
