数据传输
| MAC 地址表 |
4000 entries |
| 存储转发 |
Y |
| 支持数据传输率 |
10/ 100/1000Base-T |
| 交换容量 |
16 Gbit/s |
| 最大数据传输率 |
1 Gbit/s |
| 吞吐量 |
11.9 Mpps |
联网
| 自动 MDI / MDI - X 检测功能 |
Y |
| 流量控制支持 |
Y |
| 10G支持 |
N |
| 全双工传输 |
Y |
端口 & 界面
| 基本交换 RJ-45 以太网端口数量 |
8 |
| DC-IN插口 |
Y |

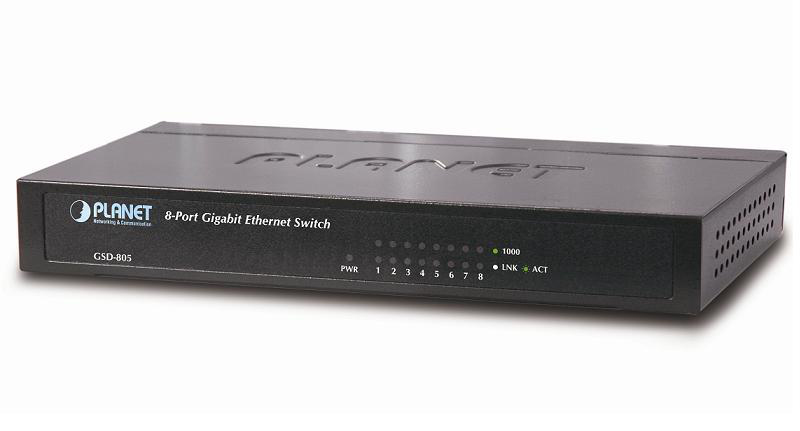

GSD-805 - 8-Port 10/100/1000Mbps, 4K MAC, 16Gbps, full duplex, Jumbo, Auto MDI / MDI-X, 9.6 W, 390g
For small palm size and desktop installation with internal power supply source, PLANET releases the new GSD-805 wall mountable 10/100/1000Mbps Gigabit Ethernet Switch, which provides non-blocking wire-speed performance and with new metal shape for desktop deployment in compact housing or SOHO application.
The GSD-805 has 4K MAC Address table and offers wire-speed packets transfer performance without risk of packet loss. The Gigabit ports with 9K jumbo packet support and with a 16Gbps internal switching fabric can handle large amounts of data transmission in a secure topology linking to a backbone or high-power servers. The high data throughput of the device makes it ideal for most Gigabit environments, especially for the network upgrading to a Gigabit environment.
All of the GSD-805 RJ-45 copper interfaces support 10/100/1000Mbps Auto-Negotiation for optimal speed detection through RJ-45 Category 6, 5 or 5e cables. Compliant with standard for Auto-MDI / MDI-X enables GSD-805 to detect the type of connection to any Ethernet device without requiring special straight or crossover cables.
The Flow Control function of GSD-805 allows routers and Servers to directly connect to this device for fast, reliable data transfer.
Key Features
- Comply with IEEE 802.3, 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T Ethernet standard
- 8-Port 10/100/1000Mbps Gigabit Ethernet ports
- Features Store-and-Forward mode with wire-speed filtering and forwarding rates
- Hardware based 10/100Mbps, half / full duplex and 1000Mbps full duplex mode, flow control and auto-negotiation
- IEEE 802.3x flow control for full duplex operation and Backpressure for half duplex operation
- Integrated address look-up engine, support 4K absolute MAC addresses
- 1Mbit on-chip frame buffer
- 9K Jumbo packet support
- Automatic address learning and address aging
- Supports Auto MDI / MDI-X function
- Supports CSMA / CD protocol
- Internal power adapter 100-240V AC, 50/60Hz, 0.2A
- FCC, CE class A compliant
