联网
| 数据传输速度 |
1000 Mbit/s |
| 自动 MDI / MDI - X 检测功能 |
Y |
| 以太网的数据传输率 |
10, 100, 1000 Mbit/s |
| 以太网铜缆技术 |
1000BASE-T, 100BASE-T, 10BASE-T |
性能
| 可支持的光纤电缆直径 |
62.5/125 µm |
| 光纤模式结构 |
Single-mode, Multi-mode |
另外
| 以太网路(RJ-45)连接接口数量 |
1 |
| 连接方式 |
Wired |
| 数据传输率（最大） |
2000 Mbit/s |
10/100/1000Base-T to mini-GBIC Industrial Managed Media Converter (LC,MM/SM)-distance depending on SFP module (-30~75 degrees C)
<b>Distance Extension with High Performance and Steady Network Communicating</b>

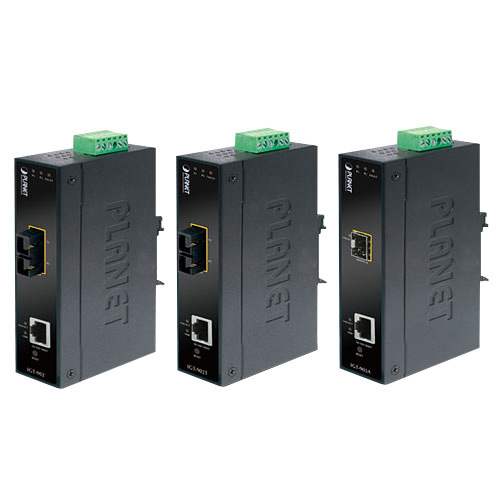

PLANET IGT-90xT Industrial Managed Gigabit Media Converter series extends communication distance with highly Gigabit performance via fiber optical wire, in which the extension distance could be up to 10km by applying IGT-902TS and IGT-905A (vary on SFP module) or up to 550m with the IGT-902T. The IGT-90xT series is specifically designed with durable components and strong housing case to operate reliably in electrically harsh and climatically demanding environments. The industrial level Gigabit media converter provides a high level of immunity to electromagnetic interference and heavy electrical surges which are usually found on plant floors or traffic control cabinets in sidewalk. Being able to operate under the temperature range from -30 to 75 degrees C, the IGT-90xT series can be placed in almost any difficult environment.
<b>Robust Switching Performance</b>
PLANET IGT-90xT Industrial Managed Media Converter series efficiently converts data between 10/100/1000Base-T and 1000Base-SX / LX network, and offers remote management and monitoring capabilities. The IGT-90xT series provides the flexibility with all kinds of 10/100/1000Mbps Ethernet Media on RJ-45 port and performs highly stable Gigabit fiber performance. It also delivers the dynamic status report and real-time alarm messages that helps the network administrator to easily monitor and manage the entire industrial networks.
<b>User-friendly Centralized Web Management Interface</b>
For efficient management, the IGT-90xT Industrial Managed Gigabit Ethernet Media Converter series is equipped with remote Web / SNMP (Simple Network Management Protocol) interface. With the built-in Web-based management interface, the IGT-90xT series acts as an easy-to-use, platform-independent management and configuration facility. It also can be managed via any standard-based management software by supporting standard SNMP. Moreover, the IGT-90xT series can manage the remote client devices by the TS-1000/802.3ah OAM protocol (operations, administration, and maintenance).
<b>Enhanced Management Features</b>
The IGT-90xT series can be programmed for advanced management functions such as IP address configuration, DHCP client function, port configuration, converter configuration, 802.1Q Tag VLAN, Q-in-Q VLAN, QoS, OAM control, Layer 2 protocol filter, broadcast storm control and Ingress/Egress bandwidth control to enhance bandwidth utilization. The enhanced management features offered by the IGT-90xT make it ideally suited for mission-critical and real-time control applications in the Industrial Ethernet networks.
