性能
| MAC 地址表 |
2048 entries |
| 自动MDIX IEEE |
Y |
| 以太网的数据传输率 |
10, 100 Mbit/s |
| VLAN Tag 标记 |
Y |
| 全双工传输 |
Y |
| 支持以太网（PoE） |
Y |
| 流量控制支持 |
Y |
| 可支持的电缆类型 |
Cat5, Cat5e, Cat6 |
| 最大传输距离 |
2400 m |
| Auto-negotiation 自动协商功能 |
Y |
| 类型 |
Network transmitter & receiver |
联网
| 布线技术 |
10/100Base-T(X) |
| 网络标准 |
IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x |
环境条件
| 运行温度（发射器） |
5 - 90 °C |
| 存储温度（发射器） |
5 - 90 °C |
| 储存温度范围 (T-T) |
-40 - 85 °C |
重量和尺寸
| 深度 |
87.8 mm |
| 宽度 |
135 mm |
| 高度 |
50 mm |
端口 & 界面
| 通过以太网（PoE）供电端口数量 |
4 |
| RJ - 11端口数量 |
1 |
另外
| 以太网路(RJ-45)连接接口数量 |
4 |
| 运行温度范围（T - T） |
-40 - 75 °C |

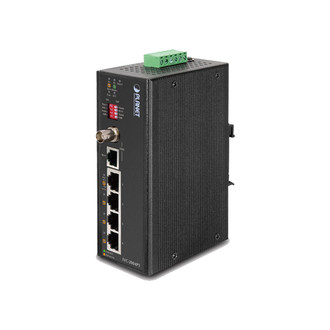

Industrial Ethernet Extender, 4-Port 10/100TX w / PoE+ 1-Port BNC / RJ-11
PLANET IVC-2004PT, an Industrial grade Ethernet Extender with PoE supported, is integrated with three advanced technologies:
- Extends Ethernet over coaxial cable or phone wire
- IEEE 802.3af Power over Ethernet
- Industrial wide-ranging operating temperature
The IVC-2004PT is designed to utilize the commonly existed coaxial cables or phone wires to extend the UTP Ethernet over 100m distance limitation and transmits both power and data over single Ethernet cable to remote PoE capable devices in heavy industrial demanding environments.
IEEE 802.3af Power over Ethernet Integrated
The IVC-2004PT provides 4 10/100Mbps copper ports with 4 IEEE 802.3af Power over Ethernet inject interfaces delivered in an IP-30 rugged strong case. Supporting up to 15.4-watt power per port for any remote IEEE 802.3af powered device (PD) such as PoE IP cameras and PoE wireless LAN access point, the IVC-2004PT is an ideal solution to deploying surveillance system, and securing control and wireless service in climatically demanding wide temperature range (-40 to 75 degrees C) environments.
Long-reach Ethernet
To extend the network distance and provide reliable Ethernet networking in hardened environments, the IVC-2004PT is equipped with one asymmetric / symmetric Ethernet extender port. The extender port can be RJ-11 or BNC connector. Customers can use either BNC or RJ-11 for their network deployment and the IVC-2004PT offers the absolutely fastest data transmission speed up to 99/65Mbps over existing coaxial cable and telephone wire without the need of rewiring.
Flexible Combination of Applications
The IVC-2004PT helps users to flexibly re-deploy a new local Intranet in the apartment, intelligent transportation systems, building automation, campus and hospitality environment by applying the original network structure without spending extra cost. The IVC-2004PT can be adjusted to Master or Slave mode via a DIP switch. It also can be set up to connect with the other IVC-2004PT or with other PLANET Ethernet extenders -- the IVC-2002, VC-201A and VC-202A. Therefore, users can easily expand the current network structure easily and more flexibly.
Environmentally Hardened Design for Industrial PoE Networks
The IVC-2004PT provides a high level of immunity against electromagnetic interference and heavy electrical surges typical of environments like plant floors or in curbside traffic control cabinets. The IVC-2004PT is packaged in a compact, IP-30 rugged strong case that allows operating in wide temperature range of -40 to 75 degrees C and installation with either DIN rail or wall mounting for efficient use of cabinet space.
