端口 & 界面
| RS-485端口 |
1 |
| BNC输入端口 |
1 |
| DC-IN插口 |
Y |
| 麦克风/音频输入插孔 |
Y |
视频
| Maximum frame rate |
30 fps |
| 最大视频分辨率 |
704 x 576 pixels |
联网
| 以太网铜缆技术 |
100BASE-TX, 10BASE-T |
| 支持以太网（PoE） |
Y |
| 支持网络协议 |
IPv4, IPv6, TCP/IP, UDP, HTTP, HTTPS, SMTP, FTP, NTP, DNS, DDNS, DHCP, ARP, Bonjour, UPnP, RTSP, RTP, RTCP, IGMP, PPPoE, 3GPP, ICMP, Samba |
技术细节
| PTZ控制（平移/倾斜/缩放） |
Y |
| 图像设置 |
Mirroring, Contrast, Color, Brightness |
| 分辨率 |
704 x 576 pixels |
另外
| 以太网路(RJ-45)连接接口数量 |
1 |
| 密码保护 |
User |
H.264 Internet Video Server, H.264 / MPEG-4 / M-JPEG, Two-way audio, 20 clients on-line monitoring at the same time, PoE
<b>Efficiently Migrate Analog CCTV System to IP-based PoE Security Solution</b>

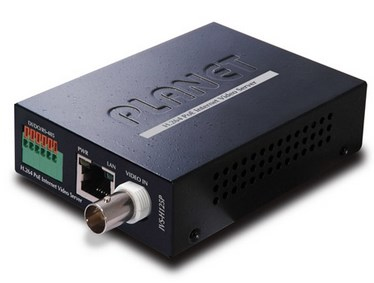

PLANET IVS-H125P one-channel PoE Internet Video Server offers the highly efficient H.264 video compression, which greatly reduces bandwidth and storage requirements without compromising image quality. It provides an easy and high quality solution to integrating analog CCTV cameras into the IP-based video surveillance system. The IVS-H125P is the ideal choice for casinos, airports, traffic surveillance and prisons, anywhere an analog surveillance system is already installed and full frame rate is needed.
<b>Full Frame Rate in All Resolutions</b>
The IVS-H125P supports H.264, MPEG-4, and M-JPEG compression formats to deliver excellent picture quality in 4CIF (D1) resolutions at 30/25 (NTSC/PAL) frames per second (fps). It also can deliver multiple, individually configurable video streams simultaneously at full frame rate in all resolutions, meaning several video streams can be configured with different compression formats, resolutions and frame rates for different needs.
<b>Advanced Event Management</b>
The IVS-H125P supports a number of advanced features that increase monitoring flexibility and capabilities, including AV out to perform the two-way audio function, micro SD/SDHC card slot for local storage, RS-485 for connection to an optional pan/tilt enclosure, and input/output port for connecting external sensor devices such as door sensors and light relays to enable real-time alarm notification and event management.
<b>Flexible Deployment and Power Functionality</b>
The IVS-H125P applies IEEE 802.3af Power over Ethernet (PoE) that increases the deployment flexibility, eliminates the need for power cables and reduces installation costs. The IVS-H125P can be powered through standard Ethernet RJ-45 cable from PoE sourcing equipment; and the IVS-H125P then can provide DC 12V to the analog cameras via male to male DC power cable connecting to its power jack. The IVS-H125P is ONVIF compliant and therefore interoperable with other brands in the market. With 64-CH central management software included, the IVS-H125P is indisputably the top choice for reliable and high performance surveillance.
