联网
布线技术 |
10/100/1000Base-T |
以太网的数据传输率 |
10, 100, 1000 Mbit/s |
以太网接口类型 |
Gigabit Ethernet |
支持以太网(PoE) |
Y |
重量和尺寸
尺寸(宽 x 深 x 高) |
73 x 55 x 24 mm |
重量 |
50 g |
环境条件
储存温度范围 (T-T) |
-20 - 70 °C |
储存相对湿度范围(H - H) |
5 - 90% |
运行湿度范围(H-H) |
5 - 90% |
产品特点
液晶显示器指示灯 |
Y |
认证 |
FCC Class B, CE |
另外
以太网路(RJ-45)连接接口数量 |
2 |
运行温度范围(T - T) |
0 - 50 °C |
2 x RJ-45, 10/100/1000Mbps, DC 48V, 50g

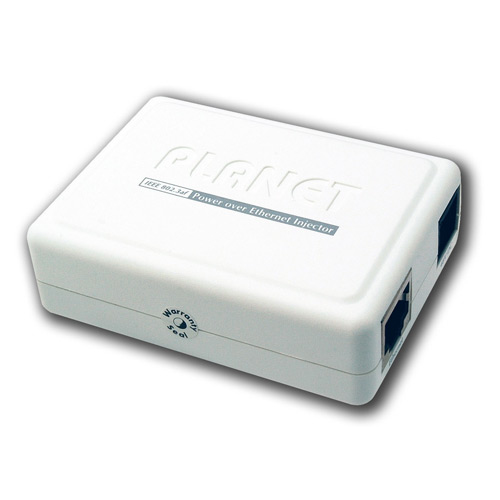

PLANET POE-152 is an IEEE 802.3af Power over Ethernet Injector, which provides DC 48V over Ethernet cables. The POE-152 IEEE 802.3af Power over Ethernet Injector inserts DC voltage into Cat.5 cable, allowing the cable between the Injector (POE-152) and Splitter (POE-152S-5V/12V) to transfer data and power simultaneously. The maximum distance between the Injector (POE-152) and Splitter (POE-152S-5V/12V) is 100 meters. With POE-152 being installed, it combines the Ethernet digital data with power over the twisted pair cables as an IEEE 802.3af Power over Ethernet Injector. And the IEEE 802.3af Power over Ethernet splitter divides the digital data and the power into two outputs.
Unlike the existing Power over Ethernet Injector, the POE-152 also provides 1000Mbps Gigabit Ethernet connection capability, except the 10/100Mbps Fast Ethernet connection capability.
With IEEE 802.3af Power over Ethernet devices installed, the system administrator only has to use a single RJ-45 Ethernet cable to carry both power and data to each device. Besides, to connect through the POE-152 and POE-152S-5V/12V, you can also have the benefits of cost saving, ease of networking planning and higher reliability. Upon any IEEE 802.3af devices being installed, the POE-152 or together with POE-152S-5V/12V can make the connection while migrating or splitting the power and the Ethernet digital packets, such as connecting the POE-152 to an IEEE 802.3af complied device, AP or IP phone.
