联网
布线技术 |
10/100/1000Base-T |
以太网的数据传输率 |
10, 100, 1000 Mbit/s |
以太网接口类型 |
Gigabit Ethernet |
支持以太网(PoE) |
Y |
遵守工业标准 |
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at |
能量控制
功耗(一般操作) |
490 W |
支持以太网(PoE)电源供应 |
52 V |
电源转换器频率 |
50/60 Hz |
电源转换器输入电压 |
100 - 240 V |
重量和尺寸
尺寸(宽 x 深 x 高) |
440 x 300 x 44 mm |
重量 |
5080 g |
环境条件
储存温度范围 (T-T) |
-10 - 70 °C |
运行湿度范围(H-H) |
5 - 95% |
产品特点
液晶显示器指示灯 |
Y |
格式要素 |
1U |
认证 |
FCC Part 15 Class A, CE |
另外
以太网路(RJ-45)连接接口数量 |
48 |
运行温度范围(T - T) |
0 - 50 °C |
24 x RJ-45 In, 24 x RJ-45 Out, 10/100Base-TX, 100m Distance, 3 x Fan, 5.08kg
High Power PoE for Public Service PoE Applications

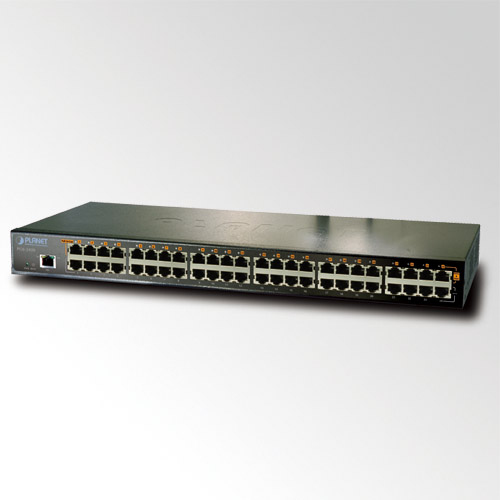

The PLANET HPOE-2400G, the next generation 24-Port Gigabit IEEE 802.3at High Power PoE Web Management injector Hub, features both IEEE 802.3af and High Power IEEE 802.3at Power over Ethernet (PoE) that combines up to 30 Watts power output and data per port over one CAT 5E/6 Ethernet cable. It is designed specifically to satisfy the growing demand of higher power consuming network PD (powered devices) such as PTZ (Pan, Tilt & Zoom) / Speed Dome network cameras, multi-channel (802.11a/b/g/n) wireless LAN access points and other network devices by providing double amount of PoE power than conventional 802.3af PoE PSE.
IEEE 802.3at PoE Standard Compliant
Till today, the IEEE 802.3af Power over Ethernet Standard has become popular yet the PoE demand still grows for increasing network-powered applications. With many critical applications increases, the demand of higher power appears. Hence, the IEEE 802.3at Power over Ethernet standard is defined to allow delivery of maximum up to 30 Watts input power to per PoE device. The IEEE 802.3at PoE standard is an ideal solution to fulfill the high power requirements directly via the RJ-45 Port interface. Compliant with IEEE 802.3at, the HPOE-2400G possesses stronger power capability than the existing 802.3af PoE PSE.
PoE Schedule for Energy Saving
Under the trend of energy saving worldwide and contribute to environment protection on the earth, the HPOE-2400G can effectively control the power supply besides its capability of giving high watts power. The “PoE schedule” function helps you to enable or disable PoE power feeding for each PoE port during specified time intervals and it is a powerful function to help SMB or Enterprise save power and money.
