性能
| 系统日志 |
Y |
| 网上管理 |
Y |
| 支持服务质量（QoS） |
Y |
| 频段 |
5.180 - 5.825 GHz |
| 以太网的数据传输率 |
10, 100 Mbit/s |
| 调制 |
16-QAM, 64-QAM, OFDM, BPSK, QPSK |
| 2.4 GHz |
Y |
| 内置存储器 |
32 MB |
| 闪存 |
8 MB |
| 5 GHz |
Y |
| 自动 MDI / MDI - X 检测功能 |
Y |
能量控制
| 支持以太网（PoE） |
Y |
| 输入电压 |
100 - 240 V |
另外
| 以太网路(RJ-45)连接接口数量 |
1 |
| 数据传输率（最大） |
300 Mbit/s |

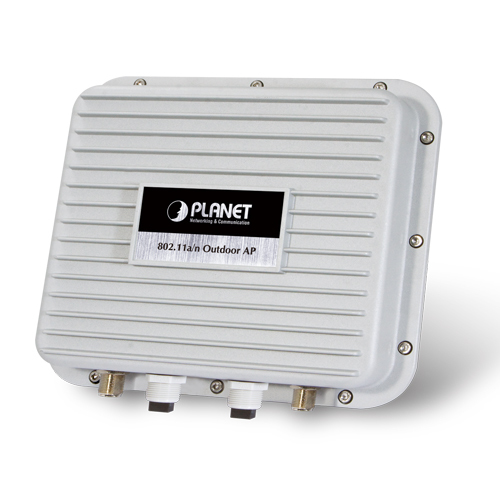

5GHz 300Mbps 802.11a/n Outdoor Wireless AP, 2 x N-type Connector
<b>High Power Outdoor Wireless Coverage</b>
PLANET has launched the latest high power outdoor wireless LAN solution -- the WNAP-7350 300Mbps outdoor wireless AP. It provides higher transmit power, better performance, wider coverage and stable connection than standard outdoor wireless AP. As an IEEE 802.11a/n compliant wireless device, the WNAP-7350 is able to give stable and efficient wireless performance for long distance application. Being designed with IEEE 802.11n standard and 2T2R MIMO technology, the WNAP-7350 makes it possible to deliver six times faster data rate up to 300Mbps than the normal 802.11a wireless device. It also features adjustable output power up to 500mW to extend higher coverage in outdoor long range application.
<b>Multiple Operating and Wireless Modes</b>
The WNAP-7350 supports multiple wireless communication connectivity (AP / Client CPE / WDS PtP / WDS PtMP / Repeater) allowing for various application requirements and thus it gives users more comprehensive experience when using the WNAP-7350. It helps users to easily build a wireless network and extend the wireless range of existing wireless network.
The WNAP-7350 also supports WISP mode, so CPE users could easily connect to Internet via WISP provider or connect to a wired network.
Advanced Security and Management
In aspect of security, besides 64/128- bit WEP encryption, the WNAP-7350 integrates WPA / WPA2, WPA-PSK / WPA2-PSK and 802.1x authority to secure and protect your wireless LAN. The wireless MAC filtering and SSID broadcast control consolidate the wireless network security and prevent unauthorized wireless connection. To fulfill enterprise and various applications demand. The WNAP-7350 enhances security and management features such as providing multiple SSID support.
<b>Perfect Solution for Outdoor Environment</b>
The WNAP-7350 is perfectly suitable in outdoor environments and exposed locations. By designing with IP67 and aluminum rugged strong housing, the WNAP-7350 can perform normally under rigorous weather conditions including heavy rain, wind and snow. Moreover, the WNAP-7350 is rated to operate at the temperature from -30 to 75 degrees C, thus operating more stably than the general outdoor equipment. It is the best way to use the WNAP-7350 to build outdoor wireless access applications between buildings on campuses, business communities, rural areas and more.
<b>Flexible Deployment with PoE Feature</b>
Compliant with IEEE 802.3af/at Power over Ethernet standard, the WNAP-7350 can be powered by PSE (Power Sourcing Equipment) via a single UTP cable. It thus reduces the needs of extra cables and dedicated electrical outlets on the wall, ceiling or any other place which is difficult to reach. Furthermore, the WNAP-7350 is also suitable to be integrated with Solar Power PoE System to offer farther wireless service in remote areas. It enables the wireless LAN deployment to become more flexible and worry-free from the power outlet locations.
<b>Easy Installation and Management</b>
With user-friendly Web UI and step by step Setup Wizard, the WNAP-7350 is easy to install, even for users who never experience setting up a wireless network. Furthermore, with SNMP-based management interface, the WNAP-7350 is convenient to be managed and configured remotely.
