基本輸出輸入系統/BIOS
| BIOS的高级配置管理规范 |
2.0 |
| BIOS内存大小 |
8 MB |
| 基本输入输出系统类型 |
AMI |
| BIOS 特点 |
PCI 2.3, PXE boot, Plug & Play, SMBIOS 2.3 |
内存参数
| 支持UDIMM时钟速度 |
1066, 1333, 1600, 1866 MHz |
| 支持的内存类型 |
DDR3L-SDRAM |
| 内存电压 |
1.35, 1.5 V |
| 支持RDIMM时钟速度 |
1066, 1333, 1600, 1866 MHz |
| 最大UDIMM内存 |
192 GB |
| 最大RDIMM内存 |
768 GB |
| 最大内部存储 |
768 GB |
处理器
| 可支持处理器数量 |
2 |
| 英特尔® 至强® 系列 |
E5-2600 |
| 系统总线类型 |
QuickPath Interconnect (QPI) |
| 内置处理器 |
N |
性能
| 集成IPMI的BMC |
Y |
| 智能平台管理接口（IPMI）支持 |
Y |
| PC健康监测 |
CPU, FAN, LED, Power supply, Temperature, Voltage |
联网
| 以太网的数据传输率 |
1000 Mbit/s |
| 局域网控制器 |
Intel I350-BT2 |
技术细节
| PCI Express x1（Gen 2.x）插槽 |
3 |
| PCI Express X16（Gen 3.x）插槽 |
8 |
| 2.5" 托架数量 |
6 |
能量控制
| 支持冗余电源供给数量 |
3 |
| 冗余电源供给设置数量 |
1 |
| 电源 |
2400 W |
设计
| 冗余风扇支持 |
Y |
| 格式要素 |
4U |
| 风扇直径 |
120 mm |
存储介质
| 支持的硬盘驱动器大小 |
2.5 " |
| 支持存储驱动器界面 |
Serial ATA II, Serial ATA III |
| 热插拔硬盘驱动器托架 |
Y |
| 支持的硬盘数量 |
6 |
图像
| 独立显存类型 |
GDDR5 |
| 离散图形适配器数量 |
6 |
| 独立显卡适配器內存 |
6 GB |
另外
| 主板晶片 |
Intel C602 |
| 系统总线 |
8 GT/s |
| 以太网连接器 |
Y |
| 以太网路(RJ-45)连接接口数量 |
2 |

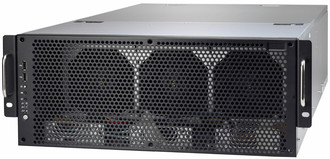

TYAN FT77A-B7059, Intel C602, 2 x Intel Xeon Processor E5-2600 Series, 24 x DDR3, 6 x Tesla K20x 6GB GDDR5, 6 x 2.5" Hot Swap, 4U Rackmount
The Tyan FT77-B7059 by PNY delivers high density computing power, scalable expansion capability, intelligent thermal solution and green design, making it an ideal choice for applications in the HPC field of life and medical science, engineering science, financial modeling and virtualization. The GPU accelerates applications running on the CPU by offloading some of the compute-intensive and time consuming portions of the code. Designed for high performance in massively parallel computing environments, the PNY product portfolio of TYAN server and NVIDIA GPUs easily meet users’ complex workloads requirements while accelerating general computing capability. PNY provides unsurpassed service and commitment to its professional graphics customers offering: 3 year warranty, pre- and post-sales support, dedicated Quadro Field Application engineers and direct tech support hot lines.
