性能
| DirectX版本 |
12.0 |
| OpenGL版本 |
4.5 |
| 最高着色模型版本 |
5.1 |
| 集成电视调谐器 |
N |
| Full HD |
Y |
| HDCP |
Y |
端口 & 界面
| DVI-D接口数量 |
1 |
| 接口类型 |
PCI Express x16 3.0 |
| DisplayPort 数量 |
4 |
| DisplayPort版本 |
1.4 |
内存参数
| 内存带宽(最大) |
717 GB/s |
| 数据宽度 |
4096 bit |
| 独立显卡适配器內存 |
16 GB |
处理器
| CUDA核心 |
3584 |
| 图形处理器系列 |
NVIDIA |
| CUDA |
Y |
| 视频卡最大显示 |
4 |
| FireStream |
N |
设计
| 插槽数量 |
2 |
| 格式要素 |
ATX |
| 风扇数量 |
1 fan(s) |
| 冷却方式 |
Active |
另外
| 图形处理器 |
Quadro GP100 |
| 双dvi(互应式数字视频) |
Y |

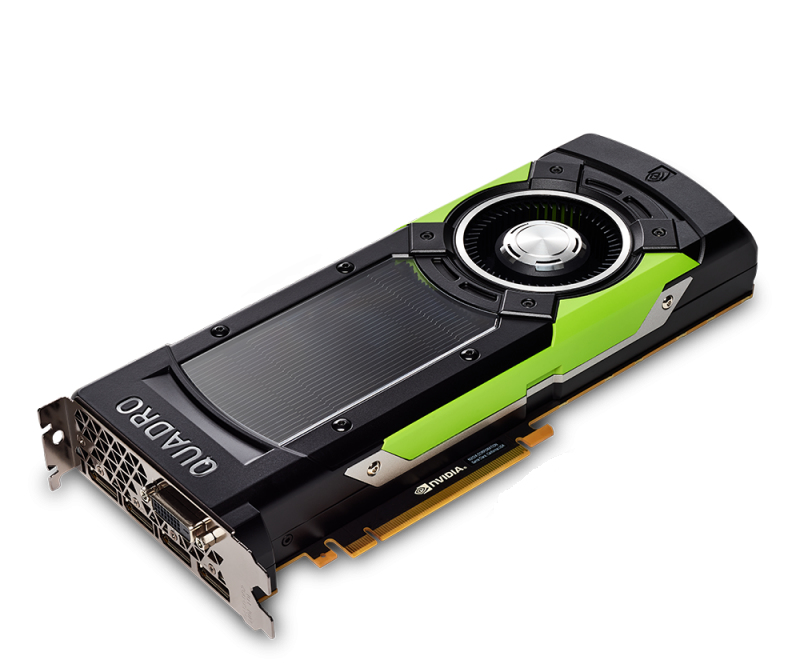

QUADRO GP100, 3584 CUDA, 16 GB HBM2, 717 GB/s, 4x DisplayPort 1.4, 1x DVI-D, PCIe Express 3.0 x 16
Unmatched Power. Unmatched Creative Freedom.
NVIDIA Quadro GP100 — World’s Most Advanced Visual Computing Accelerator.
The NVIDIA Quadro GP100, powered by Pascal GPU architecture, is equipped with the most advanced visualization and simulation capabilities to meet the needs of the most demanding professional workflows. A single GP100 with 3580 FP32/1792 FP64 CUDA cores has incredible horsepower to render photorealistic design concepts interactively, create extremely detailed 3D models, run intensive CAE simulations to validate designs, and evaluate design prototypes in immersive VR. You can even connect two GP100 boards with NVIDIA NVLink™ technology to scale performance with an amazing 32 GB of combined HBM2 ultra-high bandwidth memory.
The GP100 is an excellent choice for developers who want to tap into the power of NVLink and Unified Memory to maximize their application performance. Additionally, its fast FP16 performance makes it an ideal desktop workstation solution for developers working on the latest Deep Learning/AI algorithms and frameworks.
