内存参数
| 图形适配器内存类型 |
GDDR5 |
| 数据宽度 |
128 bit |
| 内存时钟速度 |
1150 MHz |
| 独立显卡适配器內存 |
1 GB |
性能
| DirectX版本 |
11 |
| PhysX |
N |
| 集成电视调谐器 |
N |
| HDCP |
Y |
端口 & 界面
| 接口类型 |
PCI Express 2.1 |
| HDMI端口数量 |
1 |
| VGA（D-SUB）端口数量 |
1 |

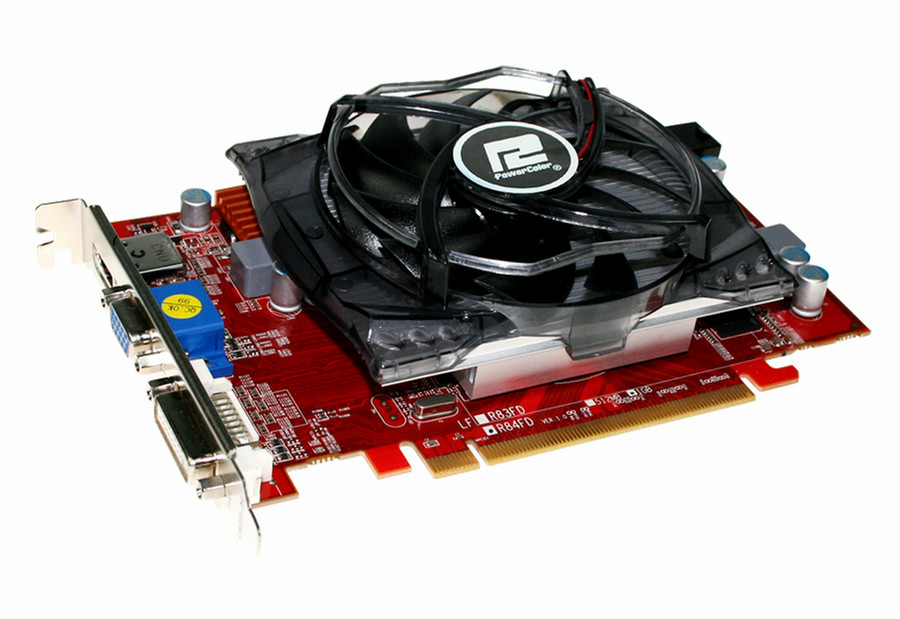

PowerColor HD5750 1GB GDDR5 (V2), 1GB GDDR5, 1150MHz (4.6Gbps), 128bit, DL-DVI/HDMI/VGA
- 1.04 billion 40nm transistors;
- TeraScale 2 Unified Processing Architecture;
- 720 Stream Processing Units;
- 36 Texture Units;
- 64 Z/Stencil ROP Units;
- 16 Z/Stencil ROP Units;
- GDDR5 memory interface;
- PCI Express 2.1 x16 bus interface;
- DirectX® 11 support;
- Shader Model 5.0;
- DirectCompute 11;
- Programmable hardware tessellation unit;
- Accelerated multi-threading;
- HDR texture compression;
- Order-independent transparency;
- OpenGL 3.2 support;
- Image quality enhancement technology;
- Up to 24x multi-sample and super-sample anti-aliasing modes;
- Adaptive anti-aliasing;
- 16x angle independent anisotropic texture filtering;
- 128-bit floating point HDR rendering;
- ATI Stream acceleration technology;
- OpenCL 1.0 compliant;
- DirectCompute 11;
- Accelerated video encoding, transcoding, and upscaling;
- Native support for common video encoding instructions;
- ATI CrossFireX™ multi-GPU technology;
- Dual GPU scaling;
- ATI Avivo HD Video & Display technology;
- UVD 2 dedicated video playback accelerator;
- Advanced post-processing and scaling;
- Dynamic contrast enhancement and color correction;
- Brighter whites processing (blue stretch);
- Independent video gamma control;
- Dynamic video range control;
- Support for H.264, VC-1, and MPEG-2;
- Dual-stream 1080p playback support;
- DXVA 1.0 & 2.0 support;
- Integrated dual-link DVI output with HDCP;
- Max resolution: 2560x1600;
- Integrated HDMI 1.3 output with Deep Color, xvYCC wide gamut support, and high bit-rate audio;
- Max resolution: 1920x1200;
- Integrated VGA output;
- Max resolution: 2048x1536;
- Integrated HD audio controller;
- Output protected high bit rate 7.1 channel surround sound over HDMI with no additional cables required;
- Supports AC-3, AAC, Dolby TrueHD and DTS Master Audio format;
- ATI PowerPlay™ power management technology;
- Dynamic power management with low power idle state;
- Ultra-low power state support for multi-GPU configurations;
- Certified drivers for Windows 7, Windows Vista, and Windows XP.
