电池
| 电池容量 |
7 Ah |
| 电池充电时间 |
10 h |
| 电池电压 |
12 V |
| 半载典型备用时间 |
8 min |
| 全载典型备用时间 |
1.5 min |
| 支持的的电池数量 |
1 |
性能
| 浪涌保护 |
Y |
| UPS 拓扑 |
Standby (Offline) |
| 冷却方式 |
Passive |
| 浪涌保护功能 |
Fax, Modem, Network, Telephone |
能量控制
| 输入工作电压(最大值) |
280 V |
| 输入工作电压(最小值) |
170 V |
| 效率 |
95% |
| 电源输入频率 |
50/60 Hz |
| 输出功率(瓦特-安培) |
800 VA |
| 输出功率因数 |
0.53 |
| 输出电压调节 |
10% |
| 输出频率调节 |
1 Hz |
| 输出功率 |
420 W |
端口 & 界面
| 调制解调器 (RJ-11)接口 |
2 |
| 交流电(AC)插座数量 |
6 |
另外
| 以太网路(RJ-45)连接接口数量 |
2 |
| Schuko (欧规)插座数目 |
6 |

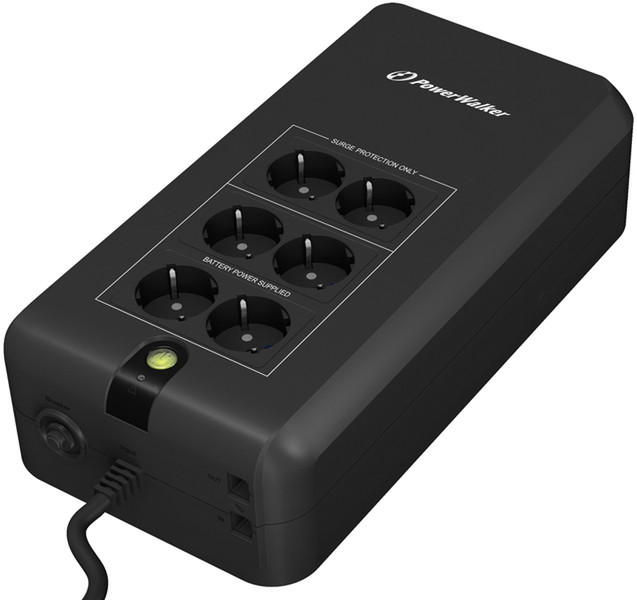

Offline, 800VA, 420W, Schuko Input, 6 x Schuko Outlet, 1 x 12V/7Ah
PowerWalker VFD APFC series is a standby/offline UPS for home and office applications and it is equipped with a technique that allows using the full power of UPS, even when used with APFC power supply load. Usually it is required to oversize a UPS to ensure secure backup when connecting a power supply with active power factor correction. With the implemented technology this is no longer needed. Therefore you can choose smaller cost-effective UPS (e.g. PowerWalker VFD APFC instead of usual offline or line interactive 1000 VA model). Besides the lower purchase price, it also saves energy cost due to lower own power consumption.
Equipped with 6 Schuko-Type outlets (all with surge protection, 4 with battery backup) these models can be used like a power strip. A special battery compartment enables an easy exchange of the rechargeable battery by the user.
