PQI DDR2-667 512MB, SO-DIMM 0.5GB DDR2 667MHz memory module

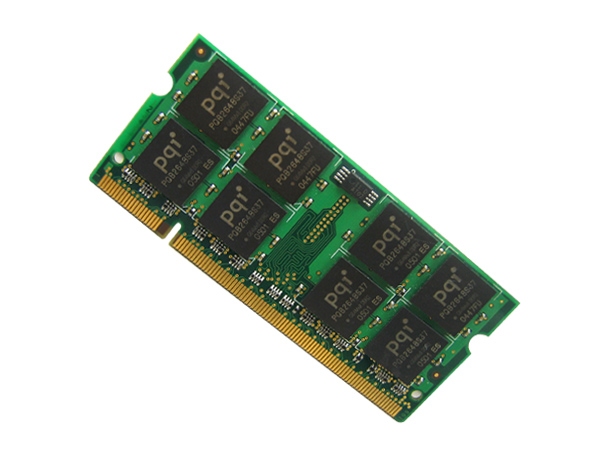

DDR2-667 512MB, SO-DIMM, CL 5.0 The DDR2-667 SO-DIMM consists of 16pcs 64Mx8bits DDR2 SDRAMs in 60 ball FBGA (Fine-pitch BGA) packages on a 200-pin printed circuit board. Compare with DDR, DDR2 modules are with higher data bandwidths, lower power consumption and enhanced thermal performance.

The special feature called On-Die Termination (ODT) is to minimize memory signal reflections at high speeds, thereby improving timing margins. Range of operation frequencies, programmable latencies allow the same device to be useful for a variety of high bandwidth, high performance memory system applications
