以太网LAN特性
| 布线技术 |
10/100Base-T(X) |
| 以太网LAN接口类型 |
Fast Ethernet |
| 以太网的数据传输率 |
10, 100 Mbit/s |
无线局域网的特点
| Wi-Fi标准 |
IEEE 802.11n |
| WLAN的数据传输率（最大值） |
150 Mbit/s |
| 无线局域网类型 |
IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
天线
| 天线增益水平（最大值） |
5 dBi |
| 天线接口类型 |
RP-SMA |
| 天线数量 |
1 |
另外
| 以太网连接器 |
Y |
| 包括 AC 适配器 |
Y |
| 以太网路(RJ-45)连接接口数量 |
4 |

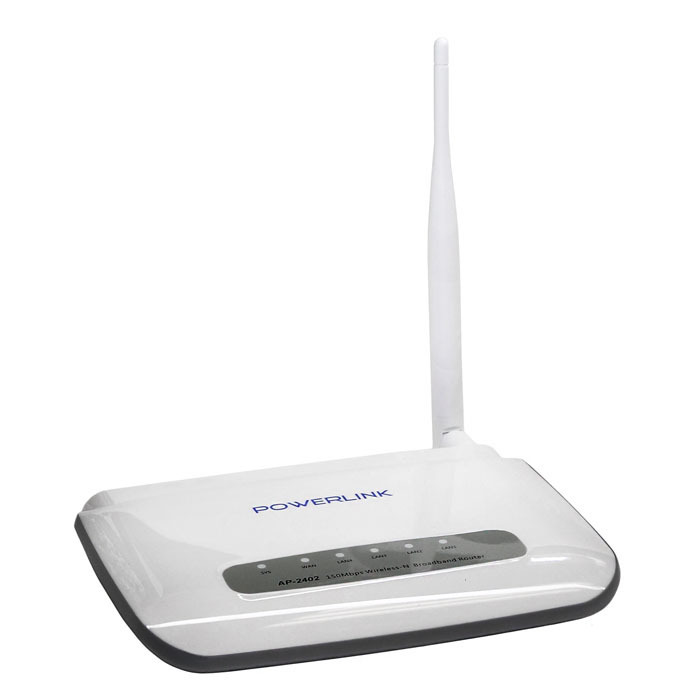

POWERLINK AP2402 802.11b/g/n Wireless AP Router/Repeater/Client 4-in-1 w/4 Port Switch and High Gain 5dBi Dipole Antenna
The AP2402 Wireless-N Broadband Router is dedicated to Small Office/Home Office (SOHO) Wireless network solution. It is 4 in 1 network device, which combines wireless access point, firewall, 4-port Switch and the NAT-Router. It provides up to 150Mbps data transmission rate in 2.4GHz frequency, complies with IEEE 802.11n, IEEE 802.11g and IEEE802.11b and backwards compatible with all IEEE 802.11n/g/b devices. And the router also supports wireless LAN up to 128-bit WEP, WPA/WPA2 encryption security. The 150Mbps Wireless-N Broadband Router also provides WEB and Remote Management and system log so that network administrators can manage and monitor the network in real time. The AP2402 Wireless-N Broadband Router also provides a hardware WPS (Wi-Fi protected setup) button, which helps you setup a secure wireless network in a snap and let you activate the wireless protection easily.
Features:
- Comply with IEEE802.11n/g/b, IEEE802.310Base-T, IEEE802.3u 100Base-TX standards
- Provides up to 3 times the transmission rate and double the range of 802.11g products
- Supports 64/128-bit WEP, WPA and WPA2 wireless security modes
- WPS (PIN/PBC) enabled
- Support DHCP Client, PPPoE Client, Static IP, PPTP
- Support multi-wireless mode: AP, WDS, AP+WDS, repeater, client
- Support MAC filtering, IP access control, DNS filter
- Support FTP, PPTP and L2TP pass through
- Support UPNP (universal plug and play)
- Upgradeable firmware for future functions
- Support WMM
- Support DMZ
