视频
| 最大视频分辨率 |
2560 x 1600 pixels |
| Full HD |
Y |
联网
| 无线局域网连接 |
N |
| 以太网的数据传输率 |
1000, 100, 10 Mbit/s |
端口 & 界面
| RS-232C |
Y |
| DisplayPort 数量 |
1 |
| 音频（左、右声道）输出 |
1 |
| DVI-I接口数量 |
1 |
| S/PDIF输出接口 |
Y |
另外
| 开/关切换钮 |
Y |
| 以太网连接器 |
Y |
| 以太网路(RJ-45)连接接口数量 |
1 |
| 图形适配器 |
Y |

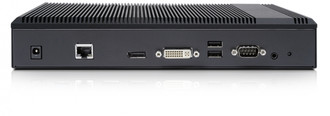

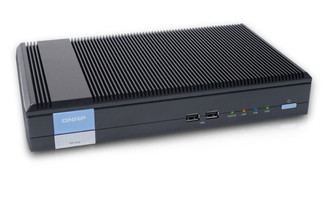

iS-1600 - Intel H61 Express, 4GB RAM, Intel HD Graphics, DisplayPort, DVI, SDHC, mSata, 4 x USB 2.0
iS-1600 Digital Signage System is a compact yet sophisticated system equipped with the professional Digital Signage software for content creation, scheduling, and remote management.
Furthermore, it’s capable of managing many digital signage players as a group at the same time without setting up additional servers.
Designed with fanless and low power consumption properties, which is ideal for 24/7 operations.
Support dual display outputs at an editable full mode. Complex layouts with RSS, Flash, and H.264 Full HD video are available.
- Dual display application: iS-1600 supports dual display outputs at an editable full mode. Moreover, each output is able to play different layout. Complex layouts include RSS, Flash, and H.264 Full HD video are available.
- Various rotation modes and multiple screen display: Connected monitors can be configured as a clone, independent, or extended large canvas, depending on the layout design, or monitor configuration, and the resolution can be changed dynamically.
- Easy steps to operate your digital signage. iSignager provides the easy solution to design your digital signage from content creation to plan publish. Even non-technical people can quickly become familiar with the process. The user interface of 3 main software functions is clear and easy to understand, users just need to do it step by step, and they can finish an expert class digital signage.
- Strong software ability covers your design, scheduling and management
- Diversified layout arrangements. The iArtist of iSignager has a well designed user interface, multi-layer concept and timeline which make you to get the hang of the software very quickly. It allows users to design a multi-zone layout and define file playback, sequences, timing, and transition effects. In addition, users can use the intuitive drag-and-drop operation to create their own templates or layouts. The timeline view lets users define playlists intuitively.
- Strong command task to manager your digital signage players : Perform mission and power on/off automatically instead of requiring complicated manual configurations. iSignager saves your on-site management cost by scheduling on/off your remote players without acquiring any on-site effort!
- No firewall/router configuration required. Creating a digital signage network through internet, such as firewall and router settings could be very time-consuming even frustrating. In iSignager, the only thing users have to know is the central control server’s IP address, then only input it into player setting via web console, player will connect to server automatically using the server’s IP address. No any firewall/router configuration required.
- Central remote system management.
