联网
| 布线技术 |
10/100/1000BASE-T(X) |
| iSCSI的支 持 |
Y |
| 动态主机配置协议客户 |
Y |
| 动态主机配置协议服务器 |
Y |
| 支持网络协议 |
AFP, FTP, HTTP, HTTPS, Telnet, SMTP, TCP/IP, IPv4, IPv6 |
处理器
| 处理器安装数量 |
1 |
| 处理器高速缓存 |
1 MB |
| 处理器光刻 |
45 nm |
| 散热设计功耗 (TDP) |
13 W |
| 实体位址扩充（PAE） |
32 bit |
| 处理器封装尺寸 |
22 mm |
| Processor ARK ID |
49490 |
| 处理器代码 |
SLBXC |
| 处理器高速缓存类型 |
L2 |
| 处理器支持内存带宽（最大值） |
6.4 GB/s |
| 无冲突处理器 |
N |
| 结温 |
100 °C |
| 处理器运行模式 |
64-bit |
| 二级缓存 |
1 MB |
| 步进 |
B0 |
| 核心的处理器数量 |
2 |
| 处理器频率 |
1.8 GHz |
| 处理器支持最大内存 |
4 GB |
| 处理器支持 ECC 功能 |
N |
| 总线类型 |
DMI |
处理器的特殊功能
| 执行禁止位 |
Y |
| 热监测技术 |
N |
| 英特尔®可信执行技术 |
N |
| 英特尔®64 |
Y |
| Number of Processing Die Transistors |
176 M |
| 可选用的嵌入式选项 |
Y |
| 英特尔®直接输入/输出硬件辅助虚拟化技术 (Intel® VT-d) |
N |
| 英特尔®超线程技术 |
Y |
| 英特尔®Turbo Boost技术 |
N |
| 英特尔® 增强暂停状态 |
N |
| 增强型英特尔®SpeedStep动态节能技术 |
N |
| 英特尔®基于需求开关 |
N |
存储介质
| 支持最大存储容量 |
18 TB |
| 支持文档系统 |
ext2, ext3, ext4, FAT32, HFS+, NTFS |
| 热插拔驱动器托架 |
Y |
| 可支持的存储驱动器数量 |
6 |
性能
| 管理协议 |
SNMP |
| 重启按钮 |
Y |
| 存取控制清单(ACL) |
Y |
| 网上管理 |
Y |
| 蜂鸣器 |
Y |
端口 & 界面
| eSATA端口数量 |
2 |
| VGA（D-SUB）端口数量 |
1 |
其他功能
| 风扇 |
2x 90mm |
| 网路功能 |
Gigabit Ethernet |
另外
| Processing die size |
87 mm² |
| 巨型帧 |
Y |
| 开/关切换钮 |
Y |
| 英特尔®AES新指令 |
N |
| 以太网路(RJ-45)连接接口数量 |
2 |
| 内部RAM |
1 GB |
| 数据传输率（最大） |
1000 Mbit/s |

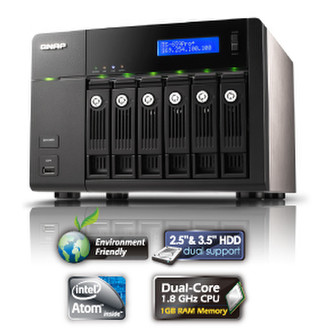

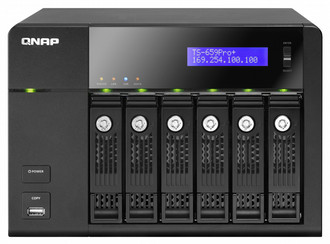

TS-659 PRO+, Intel Atom Dual-core 1.8 GHz, 1024 MB DDR2, USB 2.0, SATA, black
Features
Modern business faces the challenge of dramatic growth of digital data, including documents, emails, applications, and so on. To deploy the IT environment with a reliable, affordable and expandable storage center to securely store, share, and back up the digital assets has become an important task for the server managers of the SMB and entry-level enterprise nowadays.
TS-659 Pro+ houses up to six 3.5-inch or 2.5-inch SATA hard disk drives, incorporates Intel® Atom™ 1.8GHz dual core processor and 1GB memory, and is capable of delivering ultra high performance, reliability, and lower power consumption during intensive data transfers. The NAS is an efficient and powerful business storage center with advanced iSCSI services, cross-platform data sharing, and all-in-one server applications. With VMware® Ready™ and Citrix® Ready™ certification, and proven compatibility with Microsoft Hyper-V environment, the NAS is an ideal shared storage solution in the virtualized and clustered environment.
The Most Affordable and Flexible Virtualization Solution
TS-659 Pro+ is certified as compatible with VMware® vSphere4 (ESX 4.0 and above) and Citrix® XenServer virtualization platforms, and is also compliant with Windows 2008 Failover Cluster. The NAS can be utilized as the network shared storage of VMware, Citrix virtualization environments and Windows clustered servers. Comparing with traditional SAN (Storage Area Network), the NAS is a competitive alternative with much lower setup and maintenance costs in an IP SAN.
Feature-rich and Integrated Applications for Business
The NAS supports file sharing across Windows, Mac, Linux, and UNIX platforms. Versatile business applications such as file server, FTP server, printer server, web server, and Windows AD (Active Directory) support are provided. The dominant features, such as WebDAV, Share Folder Aggregation (also known as DFS), IPv6 and IPv4 dual-stack, Wake on LAN, schedule power on/ off, HDD S.M.A.R.T, comprehensive log systems, and policy-based unauthorized IP blocking are all included.
New iSCSI for Virtualization Deployments
Turbo NAS provides flexible and secure storage server deployment with the following enhanced iSCSI features:
- NAS + iSCSI storage solution
- Turbo NAS can serve as a NAS (network-attached storage) for file sharing and an iSCSI storage concurrently.
- Flexible multiple LUNs management
- The NAS supports multiple LUNs (Logical Unit Numbers) and iSCSI targets. The LUNs can be flexibly mapped to, unmapped from, and switched among different iSCSI targets.
- Secure IP SAN environment deployment
- Designed with CHAP authentication and LUN masking, the advanced ACL (Access Control List) offers you the capability to block the access from unauthorized initiators.
- Designed for virtualized and clustered environments
- Comparing with the high cost of Fibre Channel SAN, Turbo NAS is an affordable system that can be deployed as a storage center for virtualized and clustered server environments, such as VMware, Citrix and Microsoft Windows Failover Cluster.
