其他功能
数据传输速度 |
0.1152 Mbit/s |
接口数量 |
6 |
端口 & 界面
总线主控接口PCMCIA插槽类型 |
N |
PCI卡电路板 |
Full-height |
主机接口 |
PCI |
內置式 |
Y |
6 x DB-9, RS-232, PCI 2.1 32bit, 33MHz , MOSCHIP, 115.2kbps

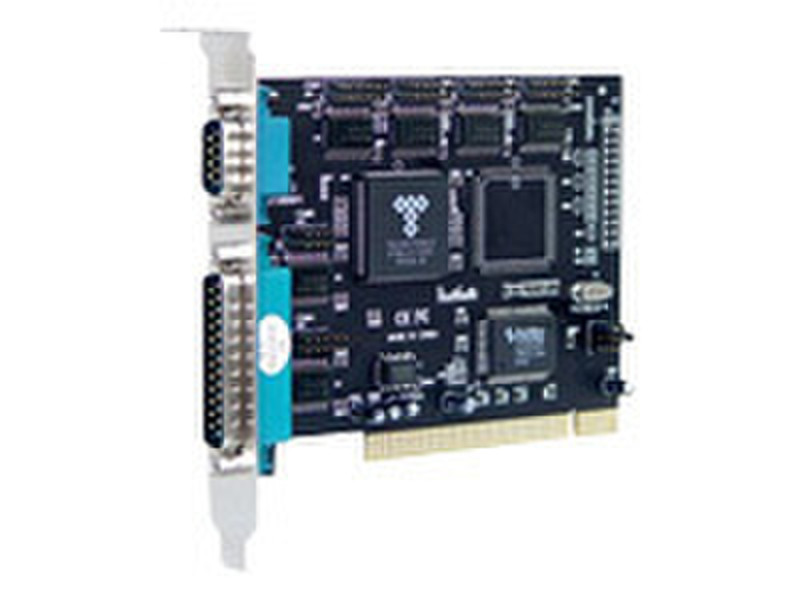

<b>6 port RS-232, serial PCI board requires three PC bracket slots</b>
The ideal solution for adding serial connectivity to a wide variety of desktop, server and embedded systems, Quatech Serial PCI and Low Profile Serial Universal PCI Boards are the most reliable in the industry.
Quatech Serial PCI boards utilize a single PCI slot to provide two independent asynchronous serial ports that share a single interrupt. Multi port versions available with 2, 4 or 6 ports, requiring only one slot to connect. The cards include a fan out cable with independent DB-9 male connectors. All PCI registers are properly implemented, so you can be assured that Quatech boards will be good citizens on the PCI bus. Serial port connections are made via DB-9 male connectors and are implemented with 16550 UARTs containing 16-byte FIFOS and data rates up to 115.2 kbps. To maintain maximum signal integrity, Quatech uses a four-layer board design to insure maximum protection versus noise propagation throughout the communication lines.
- 2, 4, or 6 independent RS-232 ports
- MOSCHIP chipset
- Serial data transfer rate up to 115200bps
- 16550 UART serial ports
- Automatically selects IRQ and I/O address
- PCI 2.1 32bit bus, 33MHz
- Extra PC slots needed for 4 and 6 port models
- Supports Windows®
2000, XP, Server 2003, Vista
- RoHS compliant
- 1 year warranty
