显示器
| 可视尺寸，横向 |
518 mm |
| 可视尺寸，纵向 |
324 mm |
| 数字垂直频率 |
50 - 85 Hz |
| sRGB的显示 |
Y |
| 数字水平频率 |
30 - 92 kHz |
| HDCP |
Y |
| 原机长宽比 |
16:10 |
| HD 类型 |
Full HD |
端口 & 界面
| AC（电源）输入 |
Y |
| DVI端口 |
Y |
| USB集线器版 |
USB 2.0 |
| USB Type-A 下游端口数量 |
2 |
| DVI-I接口数量 |
1 |
| DisplayPort 数量 |
1 |
| DVI-D接口数量 |
1 |
人体工程学
| 枢轴 |
Y |
| 旋转 |
-75 - 75 ° |
| 高度调节 |
140 mm |
| 可旋转 |
Y |
| 锯台倾斜角度 |
-5 - 15 ° |
| 倾斜调整 |
N |
| 高度调整 |
Y |
性能
| 兼容性内存条 |
Not supported |
| 集成读卡器 |
N |
| 可支持的Mac操作系统 |
Mac OS X 10.5 Leopard |
另外
| 以太网连接器 |
N |
| 开/关切换钮 |
Y |
| 能源效率等级 |
Unspecified |

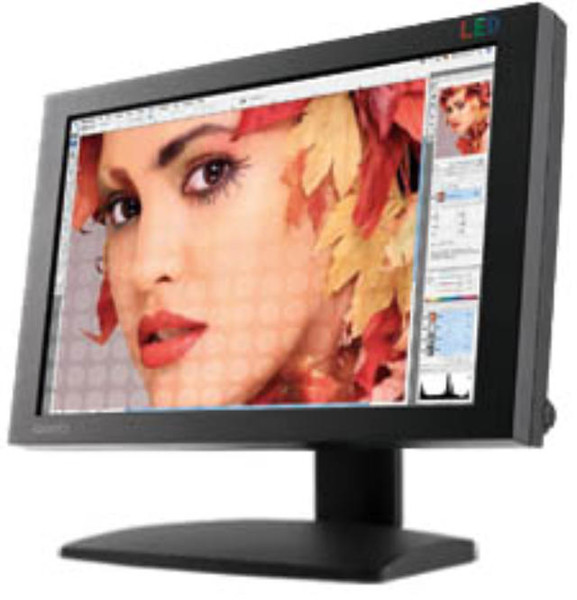

Intelli Proof 240 LED excellence, 60.96 cm (24 ") (60cm) S-IPS, 1920x1200, 16:10, 250cd/m², 12ms, DVI-D, DVI-I, DP, 2xUSB, 60W, 15kg, Black + Quato Silver Haze 3
Extended Wide Gamut proof display with 16bit 3D hardware calibration, 108% NTSC LED backlight and uniformity compensation.
- S-IPS Wide Color Gamut TFT with RGB LED-Backlight and native 10bit signal processing
- ADC - direct backlight with 1.620 RGB-LEDs and active 105 area uniformity compensation
- direct USB-control of the 3x16bit 3D LUT with 48bit precision and advanced color matching - up to 250 cd/m² luminance, contrast 1.000:1
- DVI with HDCP and 10bit DisplayPort interfaces
- Complies to Class A according to the Fogra Cert Softproof Programme
- iColor Display 3 calibration software incl. UDACT and hood included
The Intelli Proof excellence LED is perfectly suited for all high end graphic professionals and photographers which demand a true match with Adobe-RGB, ECI-RGB and ISOcoated v2. The integrated direct USB-hardware calibration adjusts whitepoint, gamma and luminance with up to 48bit precision. The true 10bit color rendering ensures vivid colors and smooth gradiants for highly precise soft proofs and perfect image editing. Additionally, the integrated ugra UDACT allows a user based certification of the display at any time.
