端口 & 界面
| RJ-45输入端口 |
1 |
| RJ-45输出端口 |
5 |
| VGA(D-SUB)输入端口 |
1 |
| DC-IN插口 |
Y |
| VGA(D-SUB)输出端口 |
3 |
| 音频(左、右声道)输出 |
2 |
技术细节
| 音频系统 |
stereo |
| 类型 |
AV transmitter & receiver |
| 最大传输距离 |
300 m |
| 可支持的电缆类型 |
Cat5e |
能量控制
| 电流 |
1.2 A |
| 外接电源转接器 |
Y |
| 工作电压 |
12 V |
QVS 300m VGA/WUXGA @ Audio Multi-Port Single CAT5e Extender Kit, 300M/984ft, 4Port (2x VGA + 2x Audio Out), 1600x1200 @ 60Hz @ 100m, 1280x1024 @ 60Hz @ 120m, 1024x768 @ 60Hz @ 180m, 800x600 @ 60Hz @ 200m, 640x480 @ 60Hz @ 300m

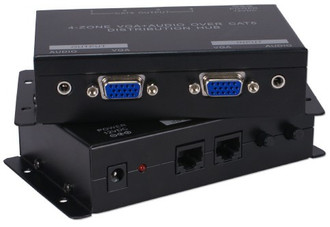

This extender kit sends VGA video and audio using a single CAT5e cable. The transmitter module features built-in 4-Port RJ45 D/A with loop-out for local screen and speaker system. Receiver module has dual-output VGA/Audio that allows you to connect two-sets of screens and speakers, it has gain and EQ control for optimal picture, and an extra RJ45 port to daisy-chain up to 3 levels. It supports resolution up to 1600x1200 @ 60Hz at 100 meters, 1280x1024 @ 60Hz at 120 meters, 1024x768 @ 60Hz at 180 meters, 800x600 @ 60Hz at 200 meters, and 640x480 @ 60Hz at 300 meters. To connect more screens and speakers, please order additional receiver module (VA-EXR). Includes wall-mounted transmitter & receiver, and universal power adaptors. (Connectors: HD15/3.5mm/RJ45).
