设计
| 支持的主板外形 |
Micro-ATX, Mini-ITX |
| 3.5" 托架数量 |
3 |
| 内部3.5英寸托架数量 |
3 |
| 侧窗 |
N |
| 2.5" 托架数量 |
2 |
| 最大显卡长度 |
280 mm |
| 最大CPU散热器高度 |
180 mm |
| 材料厚度 |
1.5 mm |
| 扩展插槽数 |
5 |
| 格式要素 |
Micro-Tower |
| 类型 |
PC |
冷却
| 支持的顶部风扇直径 |
120, 240 mm |
| 支持的后部风扇直径 |
120 mm |
| 最大后部风扇 |
1 |
| 最大顶部风扇 |
2 |
| 最大底部风扇 |
1 |
| 安装的后部风扇 |
1x 120 mm |
| 支持的底部风扇直径 |
120 mm |
端口 & 界面
| USB 3.0(第 1代3.1)Type-A 端口数量 |
2 |
Micro ATX, 210x360x335 mm, 3.5"HDDx3 + 2.5"HDDx2 / 3.5"HDDx1 + 2.5"HDDx4, Slim DVDx1, PCI Slots x 5, USB 3.0, PS/2, 3.8 kg, White

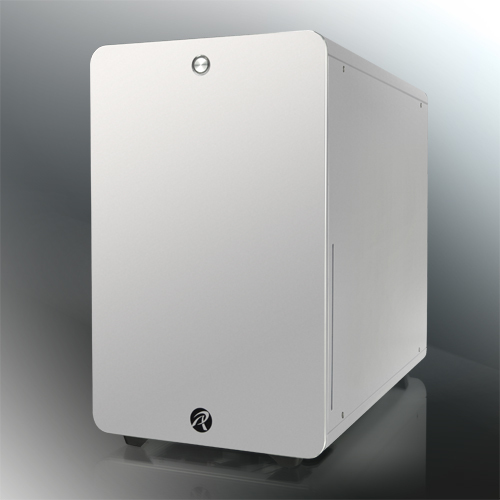

STYX, RAIJINTEK’s new aluminum Micro ATX case, has a remarkable elegant appearance design and high compatibility with your PC system. STYX is compatible with regular/ standard ATX Power supply, max. 280mm VGA card, 180mm height CPU cooler. STYX provides best cooling solution, 120mm fan pre-installed at rear, optional 2*120mm fan on top /side, optional 120mm fan at bottom and max. 240mm radiator cooling on top/side. Moreover, STYX offer a drive bay for Slim DVD on side. Entirely black coated inside, aluminum color hair-silk anodized appearance, STYX satisfies not only your request of looking for elegant taste, but simultaneously satisfies the joy of installing a performing case.
- Aluminum color hair-silk anodized appearance design
- Entire Coating black internally design
- Compatible with ATX POWER SUPPLY
- Compatible with max. 280mm VGA card
- Supports to max. 180mm height CPU cooler
- 2×USB3.0 ports
- Anti-vibration rubber for HDD installation
- Supports to install 3×3.5"HDD +2×2.5"HDD/ 1×3.5"HDD +4×2.5"HDD
- 120 mm performing fan pre-installed at rear
- Optional to install 240mm radiator on the top/side and 120mm fan at bottom
