性能
| 波形 |
Sine |
| 相数 |
1 |
| 输入相位数 |
1 |
| 输出相位数 |
1 |
能量控制
| 输入工作电压(最大值) |
276 V |
| 输入工作电压(最小值) |
172 V |
| 电源输入频率 |
50/60 Hz |
| 输出功率(瓦特-安培) |
600 VA |
| 输出工作电压(最小值) |
172 V |
| 输出工作电压(最大值) |
276 V |
| 输出频率调节 |
50 - 60 Hz |
| 输出功率 |
360 W |
认证标准
| 安全 |
EN 62040-1-1 2006/95/EC; EN 62040-3 |
端口 & 界面
| 交流电(AC)插座数量 |
8 AC outlet(s) |
600 VA, 360 W, 220-240 Vac, 50/60 Hz, USB, 6 + 3 I EC 320 C13, 3.7 Kg

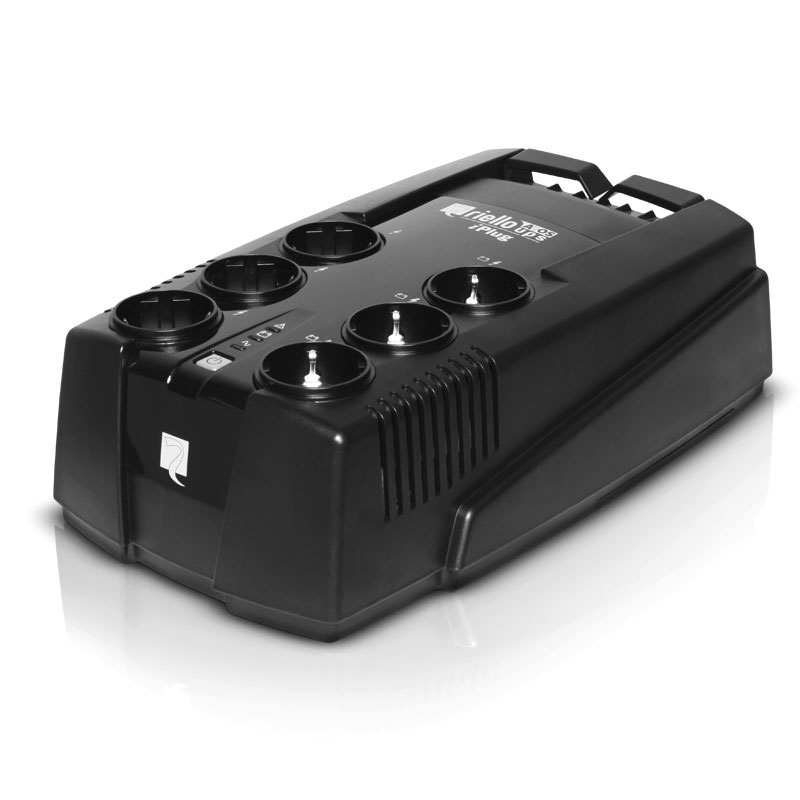

The iPlug series is the ideal solution for household, and small home office systems. Its compact size and versatility - push-button operation, LED status panel and user-replaceable batteries - make iPlug easy to install within a domestic environment to protect systems from surges and blackouts. When mains power fails the load is powered by the inverter and built-in battery. PowerShield UPS monitoring and control software can be used for an orderly unattended shutdown of IT systems.
FEATURES
- ECO LINE energy efficient product.
- Compact, ergonomic design.
- 5 sockets with battery backup.
- 3 sockets with surge protection only.
- Cold start capability to power up the UPS without mains power.
- User replaceable batteries.
- USB interface for remote monitoring.
- Power cable included.
- Protection from short-circuits.
- Auto restart - when the mains returns after battery exhaustion.
- GS/Nemko safety marking.
- Available with French (2P+E), English, Italian outlets.
ADVANCED COMMUNICATION
- PowerShield³ supervision and shut-down software for Windows 7, 2008, Vista, 2003, XP, Linux, Mac OS X and Sun Solaris operating systems.
- Plug and Play function.
