产品特点
类型 |
Freestanding rack |
最大承重量(最大载重能力) |
400 kg |
600 mm x 600 mm x 800 mm, 368.00 dm³, 43.00 kg, 11 U, IP20

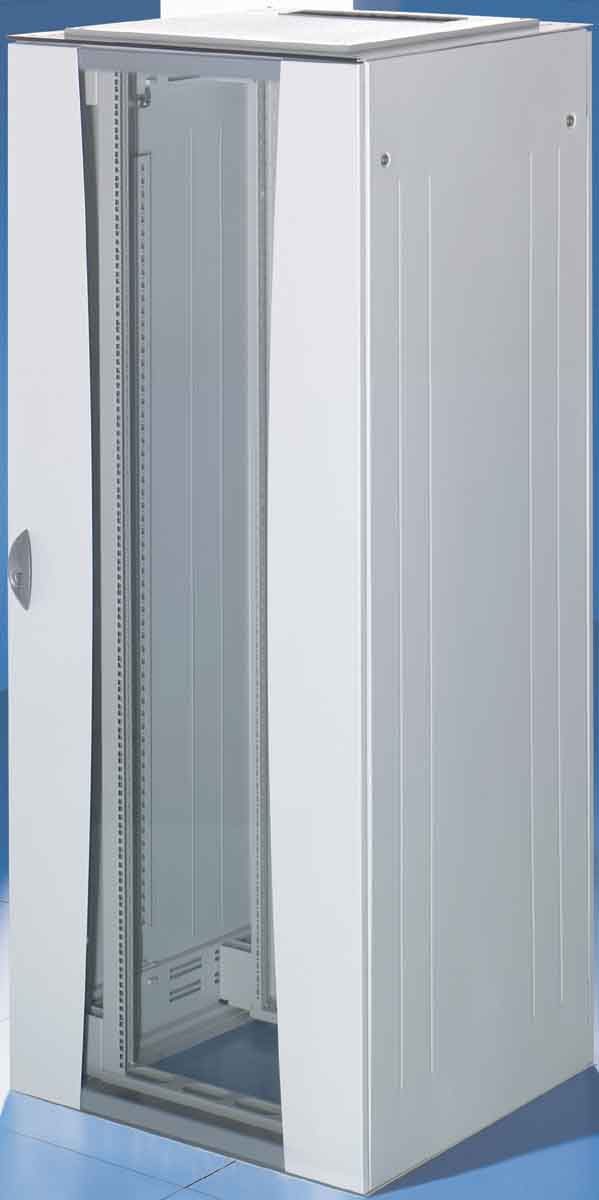

<b>TE 7000 network enclosure, 11 U, W x D 600 x 800 mm</b>
TE 7000 network enclosure
Screw-fastened, dismountable enclosure design based on self-supporting 482.6 mm (19.) mounting angles, which simultaneously form the enclosure frame.
Modular roof and base frames that can be connected together using 482.6 mm (19.) mounting frames to form a supporting enclosure frame. Quick-release, lockable side panels, including 3524 E security lock.
Front glazed door, with 4 mm safety glass, rear steel sheet door. Both include 2-point locking rod, recessed handle, 3524 E security lock, can be exchanged for
Ergoform S-handle for integrating a semi-cylinder if required. Door catch position can also be changed; 130ТА door opening angle.
Roof plate with integrated brush strip; ready to connect up fan-and-filter unit including thermostat control is an optional upgrade.
Two depth adjustable 482.6 mm (19.) mounting frames with integrated 25 mm system punching are used for the internal assembly. The 19. mounting frame is infinitely selectable.
200 kg maximum load capability per mounting level, max.
400 kg for each rack.
The enclosure system is a bayed system. A base/plinth can be fitted as an option.
Supply includes: Enclosure including levelling feet and spacer bolts for raising the roof.
