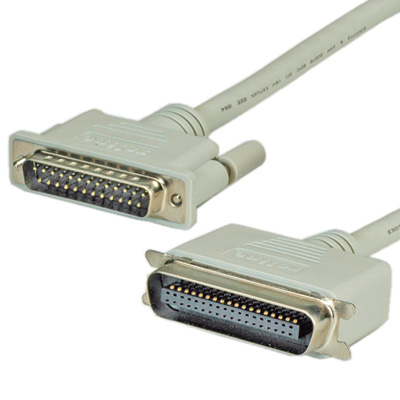

ROLINE IEEE 1284 DB25 ST - Centronics 36 ST, 3.0m 3m Grey firewire cable

IEEE 1284 Cable, DB25 M - C36 M 3 m The IEEE-1284 specification covers data transfer for bidirectional parallel interfaces: enhanced parallel ports (EPP). EPP specifies the 1.5MB bidirectional data transfer via parallel port and is up to 5 times faster than a current parallel port. EPP allows the user to connect fast peripheral devices such as disk drives, LAN interfaces, CD-ROM players and backup systems.

• AWG 28
• Transposed in pairs
• Double-screened

Verbindungsliste für EPP-Paralleldruckerkabel:

25 pol. Stecker 1-14|15|16|17|18| 19 | 20 | 21 | 22 |23|24|25| S
36 pol. Stecker 1-14|32|31|36|19|20/21|22/23|24/25|26/27|29|28|30| S.
