技术细节
| 最大传输距离 |
65 m |
| 类型 |
AV transmitter & receiver |
| 可支持的电缆类型 |
Cat6 |
重量和尺寸
| 接收器尺寸（宽 x 深 x 高） |
70 x 86 x 21.6 mm |
| 接收器的重量 |
200 g |
| 发射器重量 |
100 g |
| 发射器尺寸（宽x深x高） |
127 x 95 x 21.6 mm |

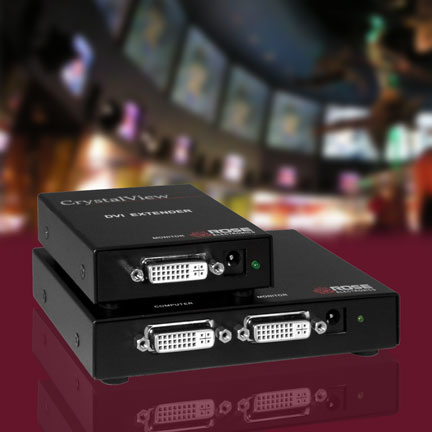

DVI Video Extender, Local Access, CAT6, (1x TX + 1x RX)
- Resolution up to 1920 x 1200
- Monitor can be up to 220' (65m) away
- Local port on transmitter unit allows viewing video at source
- Small receiver unit is installed for each monitor
- EDID read from local monitor is stored in flash memory
- Compatible with all DVI sources
<b>Overview</b>
CrystalView DVI Multi from Rose Electronics is a perfect enhancement for an existing system or designing a new video distribution system. It can be easily integrated into any system and provide perfect DVI video quality to all connected displays, with absolutely no loss in signal quality, even at 1920 x 1200, 60Hz. The unit splits the video input signal into 1, 2, or 4 different outputs, depending on the model desired.
The remote displays can be extended up to 220 feet away from the controlling computer. This is ideal for many applications in which the controlling computer needs to be remotely located in a secure area away from the DVI displays. When the CrystalView DVI Multi units are powered up, the EDID information from the locally connected monitor is read and saved in flash memory. Once saved, the local DVI monitor does not have to be connected or powered on. All models offer a local DVI connection for viewing video on a locally connected DVI monitor.
