联网
| 以太网的数据传输率 |
10, 100, 1000 Mbit/s |
| 以太网铜缆技术 |
10BASE-T, 100BASE-TX, 1000BASE-T |
| 流量控制支持 |
Y |
性能
| 可支持的Mac操作系统 |
Mac OS X 10.2 Jaguar, Mac OS X 10.3 Panther, Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard |
系统要求
| 需要互联网连接 |
Y |
| Mac兼容性 |
Y |
| 需要CD-ROM 驱动器 |
Y |
带宽
| 全双工传输 |
Y |
| 支持数据传输率 |
10/20/100/200/1000/2000Mbit/s |
另外
| 数据传输率（最大） |
2000 Mbit/s |
| 连接方式 |
Wired |
| 以太网路(RJ-45)连接接口数量 |
1 |
| 以太网连接器 |
Y |
| 巨型帧 |
Y |

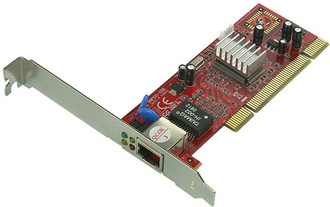

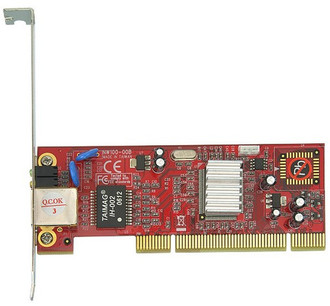

Networking LAN Card With Heatsink & 4 LED indicators, 10/ 100/ 1000Mbps, PCI V2.2, 32/64-bit, 33/66MHz
- Support Jumbo Frame transfer maximum up to 7440 bytes.
- PCI Interface.
- Compliant with PCI Specification, revision 2.2.
- Supports for IEEE802.3x Full Duplex flow control.
- Integrated PCI DMA engines.
- 32 bit/33MHz and 32 bit/66MHz fully compliant PCI host interface.
- GigaBit Ethernet.
- Fully compliant with IEEE 802.3 (10Base-T Ethernet), IEEE 802.3u (100Base-TX Fast Ethernet), IEEE 802.3z (1000Base-T Gigabit Ethernet).
- Supports Ethernet 10Mbps (half-duplex), Ethernet 20Mbps (full-duplex), Fast Ethernet 100Mbps (half-duplex), Fast Ethernet 200Mbps (full-duplex), Gigabit 1000Mbps (full-duplex) and Gigabit 2000Mbps (full-duplex).
- RJ-45 Port offer high speed transmission over CAT 5 UTP cable.
- LEDs indicator for 10Link/Activity(red), 100Link/Activity(yellow), 1000Link/Activity(green) and Full Duplex(blue).
- Auto-Negotiation with Next page capability.
- Supports pair swap/polarity/skew correction.
- Crossover Detection & Auto-Correction.
- Wake-on-LAN and remote wake-up support.
- Microsoft® NDIS5 Checksum Offload (IP, TCP, UDP) and large send offload support.
- Supports Full Duplex flow control (IEEE 802.3x).
- Supports IEEE 802.1Q VLAN tagging.
- 8K Transmit FIFO and 64K Receive FIFO support.
- Supports power down/link down power saving.
- Support Jumbo Frame transfer maximum up to 7440 bytes.
