数据传输
MAC 地址表 |
8000 entries |
存储转发 |
Y |
支持数据传输率 |
10/100/1000Mbps |
最大数据传输率 |
1 Gbit/s |
其他功能
以太网的数据传输率 |
10, 100, 1000 Mbit/s |
液晶显示器功率 |
Y |
无线局域网连接 |
N |
端口 & 界面
DC-IN插口 |
Y |
基本交换 RJ-45 以太网端口数量 |
5 |
以太网铜缆技术 |
100BASE-TX, 1000BASE-T, 10BASE-T |
联网
自动 MDI / MDI - X 检测功能 |
Y |
全双工传输 |
Y |
流量控制支持 |
Y |
10G支持 |
N |
另外
巨型帧 |
Y |
以太网连接器 |
Y |
连接方式 |
Wired |

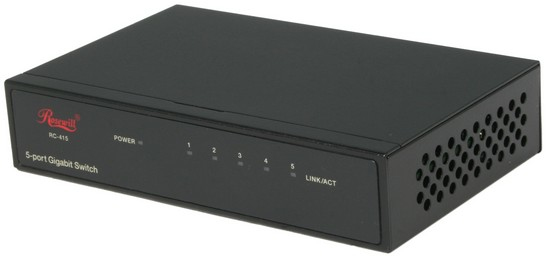

Gigabit Ethernet Desktop Metal Switch @ Jumbo Frame suppor,t 10/100/1000Mbps, 5x RJ45, 8K MAC Address Table 1024K bits (128K bytes) Buffer Memory
- Supports IEEE802.3az Energy Efficient Ethernet which allows individual ports to enter a low power idle base on data flow usage.
- Complies with 10BASE-T specifications of the IEEE802.3 standard.
- Complies with 100BASE-TX specifications of the IEEE802.3u standard.
- Complies with 1000BASE-T specifications of the IEEE802.3ab standard.
- 5 x 10/100/1000Mbps RJ-45 Nway ports.
- Supports NWay protocol for speed (10/100/1000Mbps) and duplex mode (Half/Full) auto-detection.
- Supports MDI/MDI-X auto crossover.
- Supports full and half duplex operation on all ports.
- Supports back-pressure (half duplex) and flow control (IEEE 802.3x).
- Wire-speed packet filtering and forwarding rate.
- Store-and-forward architecture filters fragment & CRC error packets.
- Supports 8K MAC address entries in whole system.
- 1024K bits (128K bytes) buffer memory.
- Supports 9K Byte Jumbo frame.
- Supports extensive LED indicators for network diagnostics.
- External power adapter.
- FCC VCCI Class A, CE, VCCI.
