数据传输
| MAC 地址表 |
1000 entries |
| 存储转发 |
Y |
| 支持数据传输率 |
10/100Mbps |
| 最大数据传输率 |
0.1 Gbit/s |
联网
| 端口镜像 |
N |
| VLAN支持 |
N |
| 自动 MDI / MDI - X 检测功能 |
Y |
| 流量控制支持 |
Y |
| 10G支持 |
N |
| 全双工传输 |
Y |
端口 & 界面
| 基本交换 RJ-45 以太网端口数量 |
8 |
| 以太网铜缆技术 |
100BASE-TX, 10BASE-T |
其他功能
| 液晶显示器功率 |
Y |
| 无线局域网连接 |
N |
| 以太网的数据传输率 |
10, 100 Mbit/s |
环境条件
| 运行温度范围(T - T) |
32 - 104 °F |
另外
| 巨型帧 |
N |
| 以太网连接器 |
Y |
| 连接方式 |
Wired |

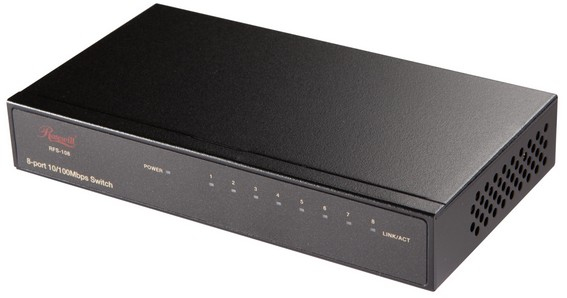

10/100Mbps Switch, 10/100Mbps, 8x RJ45, 1K MAC Address Table, 96KB Buffer Memory
- 8x 10/100Mbps RJ-45 Nway ports.
- Supports 802.3az Green Ethernet: Detecting port usage power saving and cable length power saving.
- Supports NWay protocol for speed (10/100Mbps) and duplex mode (Half/Full) auto-detection.
- Supports MDI/MDI-X auto crossover.
- Supports full and half duplex operation on all ports.
- Supports back-pressure (half duplex) and flow control (IEEE 802.3x).
- Wire-speed packet filtering and forwarding rate.
- Store-and-forward architecture filters fragment & CRC error packets.
- Supports 1K MAC address entries in whole system.
- 768K bits (96KB) buffer memory.
- FCC Class B, CE VCCI.
