端口 & 界面
| 主机接口 |
PCI-E |
| 內置式 |
Y |
| PCI版本 |
1.1 |
联网
| 以太网的数据传输率 |
10, 100, 1000 Mbit/s |
性能
| 可支持的Mac操作系统 |
Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion |
| 网路唤醒功能 |
Y |
另外
| 连接方式 |
Wired |
| 以太网路(RJ-45)连接接口数量 |
2 |
| 巨型帧 |
Y |
| 数据传输率(最大) |
2500 Mbit/s |
| 以太网连接器 |
Y |

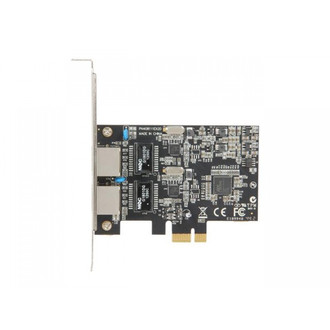

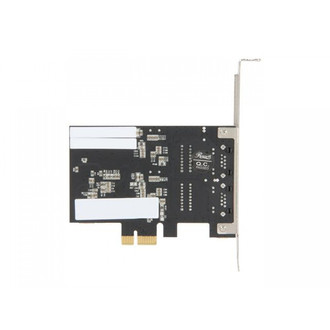

PCI Express - 2x RJ45
Designed to Meet PCI Express Specification Revision 1.1, compatible with x4, x8, x16 Single-lane (or x1) PCI Express Throughput Supports Rate of 2.5Gbps Fully Compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab 10/100/1000M Data Auto-negotiation 9K bytes Jumbo Frame Support LEDs Indicate the Status of Data Transmission Support Wake On Lan (WOL) Power Management Full Duplex Mode Doubles the Network Connections Speed. OS support: Windows 8 (32/64 bit) Windows 7 (32/64 bit) Vista (32/64 bit) Windows XP (32/64 bit) Mac OS X 10.5, 10.6, 10.7, 10.8 Linux 2.6.x and higher kernel OS
