无线局域网的特点
| 无线局域网连接 |
Y |
| Wi-Fi标准 |
IEEE 802.11n |
| 无线局域网类型 |
IEEE 802.11n, IEEE 802.11g, IEEE 802.11b |
联网
| 频段 |
2.412 - 2.4835 GHz |
| 调制 |
CCK, OFDM |
另外
| 数据传输率(最大) |
300 Mbit/s |
| 连接方式 |
Wireless |

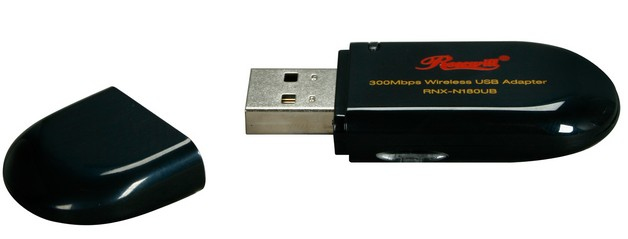

(1T2R) IEEE 802.11b/g/n USB 2.0 Wireless Adapter @ Hardware WPS Button / Up to 300Mbps Download Data Rates / Support 64/128-bit WEP (Hex & ASCII), WPA/WPA2, WPA (TKIP @ IEEE 802.1x)/WPA2(AES @ IEEE 802.1x)
- Supports MIMO technology with 1 transmit antenna and 2 receive antenna.
- Provides max. 300Mbps download rate and 150Mbps upload rate.
- Support WPS (Hardware WiFi Protected Setup Button).
- Supports 20MHz/40MHz frequency width.
- Auto-detects and changes network transmission rate.
- Provides two work modes: Infrastructure and Ad-Hoc.
- Supports WMM for Multimedia Applications with Quality of Service in Wi-Fi Networks.
- The IEEE 802.11n Draft prohibits using High Throughput with WEP or TKIP as the unicast cipher. If you use these encryption methods (e.g. WEP, WPA-TKIP), your data rate will drop to 54Mbps. Rosewill recommend setting your router’s wireless encryption as WPA-AES or WPA2-AES or update the latest firmware, in order to keep your wireless transfer rate at N speed.
