能量控制
| 功率因数 |
0.99 |
| 输入工作电压(最大值) |
300 V |
| 输入工作电压(最小值) |
110 V |
| 效率 |
88% |
| THD输出电压 |
3% |
| 电源输入频率 |
50/60 Hz |
| THD输入电流 |
5% |
| 输出功率(瓦特-安培) |
1000 VA |
| 波峰因数 |
3:1 |
| 输出工作电压(最小值) |
200 V |
| 输出工作电压(最大值) |
240 V |
| 输出电压调节 |
2% |
| 输出频率调节 |
0.2 Hz |
| 输出功率 |
800 W |
性能
| 噪音水平 |
50 dB |
| 发声警报器 |
Y |
| 冷却方式 |
Active |
| 输入相位数 |
1 |
| 输出相位数 |
1 |
认证标准
| 安全 |
EN-62040-1, EN-60950-1, EN-60529 |
SLC-1000 TWIN PRO (B1) Large back up time, 1000VA, 800W, Tower, USB

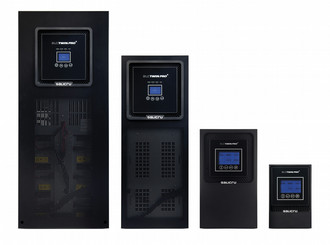

Covering a wide range of powers from 700 VA to 20 kVA, SALICRU’s SLC TWIN PRO series gives maximum reliability in electrical protection for businesses and industry.
With its double conversion On-line technology, the most reliable technology on the market, the SLC TWIN PRO series is a single phase output UPS (with single phase input from 700 VA to 10 kVA and three-phase input from 8 kVA to 20 kVA), with an output power factor of 0.9, broad communication options via interface + monitoring/automatic file closing shutdown software, batteries for standard autonomy integrated in the cabinet itself, option of extending back-up for processes requiring greater available autonomy and options of parallel/redundant operation up to 4 units for installations growing in qualitative and quantitative demands.
Added performances include the standard static and maintenance bypasses, the low input current distortion (THDi) under 5%, small footprint in both standard and extended autonomies, full information obtained from the LCD/graphic display or the possibility of working in frequency converter mode.
