计算机系统
内部存储容量 |
8 GB |
内置存储器 |
1.5 GB |
处理器频率 |
1 GHz |
电脑系统 |
Y |
电脑系统的类型 |
System on Chip (SoC) |
核心的处理器数量 |
4 |
端口 & 界面
RS-232C |
Y |
红外数据端口 |
Y |
DVI端口 |
Y |
音频(左、右声道)输出 |
1 |
分量视频(YPbPr/YCbCr)输入 |
1 |
VGA(D-SUB)输入端口 |
1 |
DVI-D接口数量 |
1 |
USB 端口数量 |
1 |
USB版本 |
2.0 |
HDMI端口数量 |
1 |
性能
无线局域网连接 |
Y |
Samsung Smart Signage TV 智能标牌电视(SSTV) |
Y |
集成电视调谐器 |
Y |
设计
边框宽度(顶部) |
9.5 mm |
边框宽度(底部) |
15 mm |
包装数据
手持式遥控器 |
Y |
配有电池 |
Y |
快速入门指南 |
Y |
保修卡 |
Y |
显示器
HD 类型 |
Full HD |
原机长宽比 |
16:9 |
显示类型 |
LED |

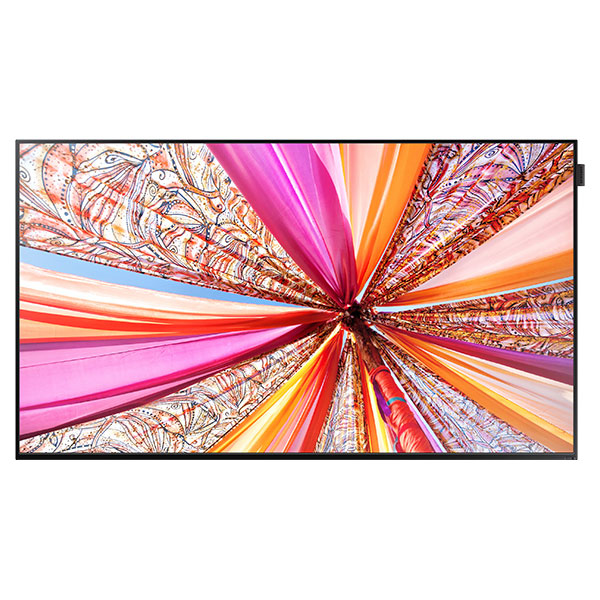

121.92 cm (48 ") LED, 1920 x 1080, 16:9, 350 cd/m², 5000:1, 8 ms, D-sub, DVI-D, HDMI, USB 2.0, RJ45, Recertified
Enhanced System-on-Chip Performance with a Quad Core CPU
Powered by a System-on-Chip (SoC) semiconductor and quad core CPU with 8GB of storage, Samsung's SMART Signage Platform is an open and integrated player side media platform that provides a powerful, streamlined solution to reduce TCO for digital signage deployments, through savings in hardware, installation and operating costs.
Sleek Industrial Design
The 9.5mm bezel provides a sleek, elegant look that can be polished with optional customizable bezel trim kits in matte black or white. And the stylish, ultra-slim 2.0" chassis helps simplify installation while meeting ADA compliance requirements.
Slim Direct-Lit LED Backlight
Achieve sharp, detail-rich images and crisp, legible type with this slim direct-lit display featuring 1920 x 1080 Full HD resolution with 350 nits brightness and a 5,000:1 contrast ratio.
Optional Touch Overlay
The optional touch overlay accessory delivers a cost effective, PC-less touch solution that transforms your display into an interactive whiteboard with up to 10 simultaneous touchpoints. Create more collaborative presentations or a dynamic customer experience with tangible results for your business.
Built-In Wi-Fi®
Enjoy the versatility of expanded connectivity to mobile devices, from easy media sharing and screen control to simple content mirroring from a tablet or mobile phone to your display.
MagicInfo S3 Digital Signage Software
Create playlists, set playback schedules and publish content directly to the display with this software. Most traditional file formats are supported including RSS feed and live web pages.
