投影仪
| 投影仪亮度 |
1500 ANSI lumens |
| 投影技术 |
LCD |
| 投影仪最佳分辨率 |
XGA (1024x768) |
性能
| 点时钟扫描频率 |
140 MHz |
| 垂直扫描范围 |
100 Hz |

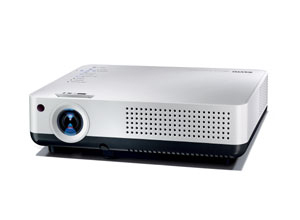

PLC-XW50 XGA - 1500 ANSI lumen
The compact design (330x 80x 237 mm) and lightweight body (2.9kg) let you make presentations almost anywhere.
The PLC-XW55 and PLC-XW50 series use a 200-watt UHP lamp for outstanding brightness and well-balanced color reproduction. The PLC-XW55 series provide 2,000 lumens and PLC-XW50 series offer 1,500 lumens brightness.
Digital Realized Interpolation Technology (DRIT) for supporting input signals with resolutions from UXGA to VGA by compressing/decompressing signals.
The PLC-XW55 and PLC-XW50series have one D-sub input terminals. One of monitor out terminal.
No need to wait for the projector to cool down. You can disconnect the power cord right after your presentation.
To compensate for keystone (trapezoidal) picture distortion, the PLC-XW55 and PLC-XW50 series provide vertical keystone correction with a correction range up to ±20 degrees.
Note: On screen image size after correction is smaller than that of original. Correction range varies depending on operation settings such as lens shift ratio, lens zoom magnification and so on.
The PLC-XW55 and PLC-XW50 series feature a 5/6x to 16x digital zoom that lets you easily enlarge or reduce the screen display size as desired.
The intelligent Fan Operation Linear Control System reduces cooling fan noise according to changes in temperature.
The 3D Automatic Uniformity Correction Control (AUCC) circuit ensures a uniform projected image, balancing uneven color and brightness gradations for more natural image displays.
The PIN code lock function prevents others from operating the projector without inputting the correct PIN code. The key lock function, which is set from the operation menu, locks the operation of the top control and remote control buttons.
This mode lets you use a blackboard as a projection screen*. It adjusts the colors to make images look similar to those projection to an ordinary white screen.
You can select either mode at start-up. Countdown mode ensures that the lamp has reached sufficient brightness before projecting the image. Immediate mode lets you project the image as soon as the power is turned on, even if the optimum level of brightness has not been reached.The PLC-XW55 and PLC-XW50 series employ three 0.6-inch polysilicon thin-film transistor LCD panels for projection of true XGA (1024 x 768) resolution images with a total of 2,359,296 pixels.
A progressive scan circuit ensures superb, high-resolution video images. The Luminance Transient Improvement (LTI) and Color Transient Improvement (CTI) sharpens the detail.The result is clearer, sharper images from both RGB and video sources.
Select the most appropriate gamma correction mode from among Standard, Cinema, Real (for graphics) and four user settings.
