端口 & 界面
| 联系工作距离 |
114 mm |
| 最大电缆长度 |
152 m |
能量控制
| 直流电压范围 |
5 - 16 V |
| 耗电量 |
110 mA |
技术细节
| 访问读码器 |
N |
| 指纹读卡机 |
N |
| 访问芯片/读卡器 |
Y |
| 进入芯片/卡读卡机的类型 |
Contact |
| 载波频率 |
125 kHz |

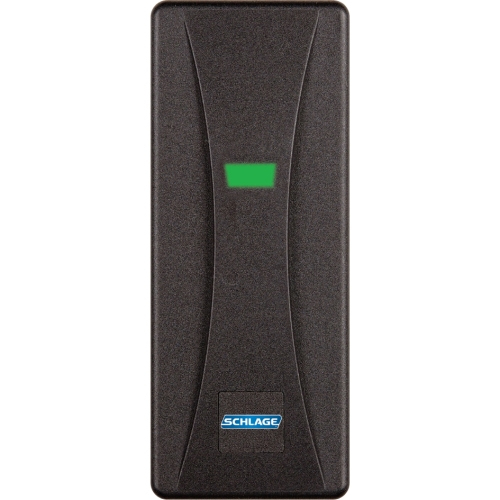

SXF1050, 125 kHz, 5-16 VDC, 110 mA, LED, 18 AWG, Polymer, Black
Proximity Readers are ideal for applications utilizing legacy proximity systems or credentials. Operating at 125 kHz, these Proximity Readers are convenient and easily integrated into existing 125 kHz access control systems. Proximity Readers are compatible with industry leading proximity credentials.
The SXF1050 Proximity Mini-Mullion Reader is an attractive and cost effective reader well suited for door mullion or narrow stile mounting. The SXF1050 is compatible with industry standard proximity technologies.
<b>Durability/Warranty</b>
The SXF1050 is manufactured with the highest quality UV-resistant materials. These plastics inhibit discoloration in all types of environmental conditions, including direct sunlight. The readers feature potted electronics and circuitry for protection against inclement weather. We protect our customers with a lifetime warranty, providing full confidence in your reader products.
