性能
最大气流 |
74.25 cfm |
最小气流 |
9.8 cfm |
气流 |
126.1 m³/h |
最低空气压力 |
0.02 mmH2O |
最大空气压力 |
1 mmH2O |
噪音水平(低速) |
3 dB |
噪音水平(高速) |
26.5 dB |
转速(最小) |
200 RPM |
转速(最大) |
1300 RPM |
类型 |
Fan |
适用于 |
Computer case |
风扇数量 |
1 |
风扇直径 |
120 mm |

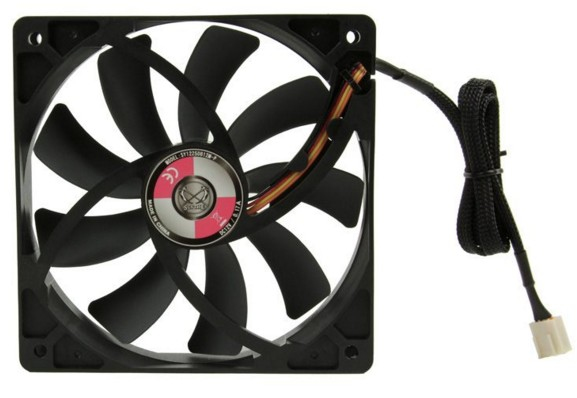

Slip Stream 120 DB PWM, 200+-300 ~ 1300upm, 3 - 26.5dBA, 16.65 - 126.1m³/h, 9.8 - 74.25 CFM, 0.02 - 1.0 mm H₂O / 0.2 - 9.81Pa, 4-Pin, Dual Ball Bearing
This fan with dual ball bearings is the newest addition to the Slip Stream Serie which is called one of the the least noisy yet powerful fan series on the market. The double ball bearing technology is designed for continuous operation. It reduces friction and thus wear. Moreover, it is less sensitive to dust, which enables an up to 10 times longer lifespan compared to fans with conventional bearings. The principle of small hub and large rotor blades was maintained, which leads to a 20 -40% higher airflow compared to fans with a traditional hub. This PWM model also provides the ability to automatically adjust the fan speed depending on the workload of the system. guarantees excellent performance at optimum operating temperatures at all times.
Dual-Ball-Bearing
The new Slip Stream 120 DB fans use 2 high precision ball bearings instead of a plain bearing. As a result of the small contact surface between the tread and balls, the friction and the wear of the bearing could be reduced significantly. This benefits the durability and reliability of the fan, which is reflected in an excellent MTBF of 350,000 hours. Another advantage of the new ball bearing is shown in a lifetime of smooth running together with a practically noise-free fan operation in marked contrast to plain bearing models.
Increased Air Flow Rate
Based on previous models the Slip Stream 120 DB Series inherits the smaller fan hub and the to a larger area adjusted fan blades. This results in a larger flow area and an increased air flow at the same speed compared to fans with conventional hub.
PWM-Connector
The PWM model of the Grand Flex series can be controlled via a PWM-able motherboard making use of the pulse width modulation function. In this way, a more accurate yet flexible operation matching the situation is achieved with noise levels at a possible minimum. With the included 3 to 4-pin molex adaptor, directly hooking up with a power supply is also possible.
