麦克风
RF功率 |
30 mW |
麦克风频率 |
80 - 18000 Hz |
类型 |
Stage/performance microphone |
端口 & 界面
操作频率 |
566 - 608 MHz |
XLR 音讯连接输出端口 |
Y |
重量和尺寸
麦克风尺寸(宽x高) |
265 x 50 mm |
麦克风重量 |
450 g |
80-18000 Hz, SNR 110 dB, THD <0.9%

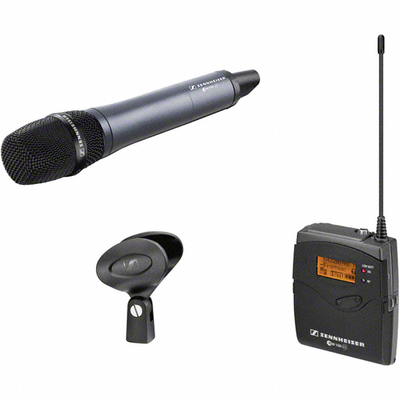

A handheld system designed for field operation: this system is the perfect choice for ENG professionals. The rugged hand-held cardioid wireless microphone provides professional sound quality for interviews and reporting, even under unfavorable conditions. At the camera end of the wireless signal path is the portable and reliable EK 100 G3 adaptive diversity receiver.
- Sturdy metal housing (transmitter and receiver)
- 42 MHz bandwidth: 1680 tunable UHF frequencies for interference-free reception
- Enhanced frequency bank system with up to 12 compatible frequencies
- Adaptive-diversity reception for high reception quality
- Pilot tone squelch for eliminating RF interference when transmitter is turned off
- Automatic frequency scan feature searches for available frequencies
- Enhanced AF frequency range
- Increased range for audio sensitivity
- Wireless synchronization of transmitters via infrared interface
- User-friendly menu operation with more control options
- Illuminated graphic display (transmitter and receiver)
- Auto-Lock function avoids accidental changing of settings
- HDX compander for crystal-clear sound
- Transmitter and receiver feature battery indicatation in 4 steps
- Easy-exchangeable microphone modules from evolution series
- Contacts for recharging BA 2015 accupack directly in the transmitter or receiver
- Wide range of accessories adapts the system to any requirement
