设计
| 最大PSU长度 |
145 mm |
| 最大CPU散热器高度 |
150 mm |
| 最大显卡长度 |
315 mm |
| 侧窗 |
N |
| 类型 |
PC |
| 3.5" 托架数量 |
2 |
| 内部3.5英寸托架数量 |
2 |
| 2.5" 托架数量 |
2 |
冷却
| 安装的顶部风扇 |
1x 120 mm |
| 最大顶部风扇 |
2 |
| 支持的后部风扇直径 |
80 mm |
| 最大后部风扇 |
1 |
Mini-ITX, 2x 120 mm fans (1x pre-installed) / 1x 240 mm radiator, 1x 80 mm fan, 2 x 2.5"/3.5"
<b>Compact, Elegant and High Quality</b>

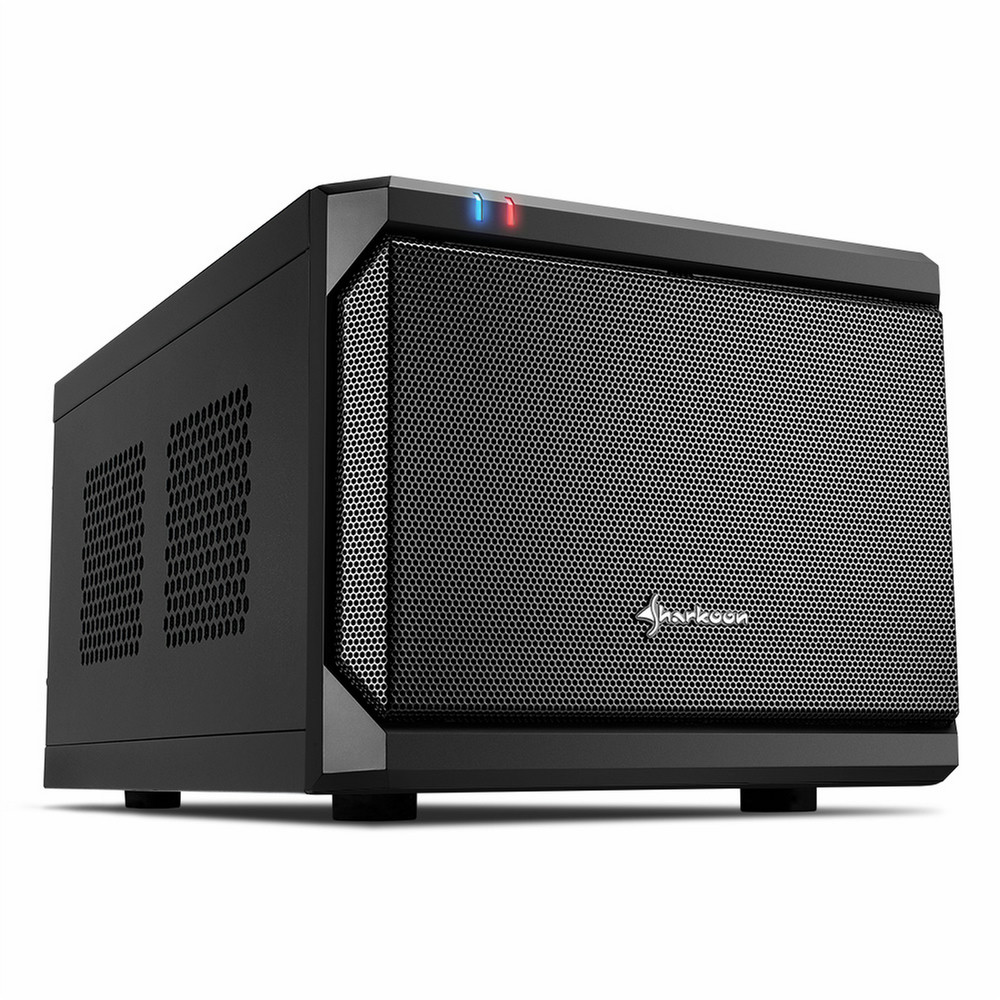

The all-black QB ONE Mini-ITX PC case offers maximum flexibility within the smallest of space. Thanks to its sophisticated layout, the high quality case offers more than enough room for all needed components. With its compact dimensions of only 36.8 x 22.5 x 18.0 cm (L x W x H), it is ideal for mobile and space-saving usage. The elegant design is recommended for use in the living room, for example, as a powerful gaming PC. Thanks to the clever arrangement of the controls and ports, the case can be used both horizontally and vertically. In addition, conventional ATX power supplies can be installed, in which the use of SFX power supplies provide even more space.
<b>Ideal Ventilation Options</b>
A quiet 120 mm fan is pre-installed at the top and, if needed, an additional 120 mm fan can also be mounted. For optional water cooling of the system, the top also has room for a 240 mm radiator. Ideal: All side panels offer generous ventilation openings and are all equipped with dust filters. A clear advantage for built-in graphics cards is the fresh air perfectly supplied via the side openings. In order to further optimize the ventilation, an 80 mm fan can be mounted in the rear.
<b>Modern Connectivity</b>
In the front, two USB 3.0 and two USB 2.0 ports provide easy access for connecting peripheral devices. In addition, the QB ONE has two audio ports for convenient use of a headset.
<b>Versatile Mounting Options</b>
The QB ONE accommodates the installation of a powerful dual-slot graphics card, with a maximum length of up to 31.5 cm. In addition, up to two 3.5" hard drives or two 2.5" HDD/SSDs can be installed. An additional 2.5" HDD/SSD can be mounted in the back of the case, instead of an 80 mm fan. CPU coolers with a maximum height of up to 15 cm can also be used. For easy mounting of a cooler, the case provides an appropriate CPU cooler cutout. Practical thumbscrews simplify the opening as well as the closing of the case.
