设计
| 侧窗 |
Y |
| 3.5" 托架数量 |
3 |
| 5.25" 托架数量 |
3 |
| 内部3.5英寸托架数量 |
3 |
| 2.5" 托架数量 |
4 |
| 照明 |
Y |
| 外部5.25“托架数量 |
3 |
| 最大PSU长度 |
250 mm |
| 最大CPU散热器高度 |
160 mm |
| 最大显卡长度 |
385 mm |
| 格式要素 |
Midi-Tower |
| 扩展插槽数 |
7 |
| 类型 |
PC |
冷却
| 液体冷却能力 |
Y |
| 支持的后部风扇直径 |
120 mm |
| 安装的后部风扇 |
1x 120 mm |
| 前部风扇安装 |
1x 120 mm |
端口 & 界面
| USB 3.0（第 1代3.1）Type-A 端口数量 |
2 |
mini-ITX/micro-ATX/ATX, 2 x USB 3.0, 2 x USB 2.0

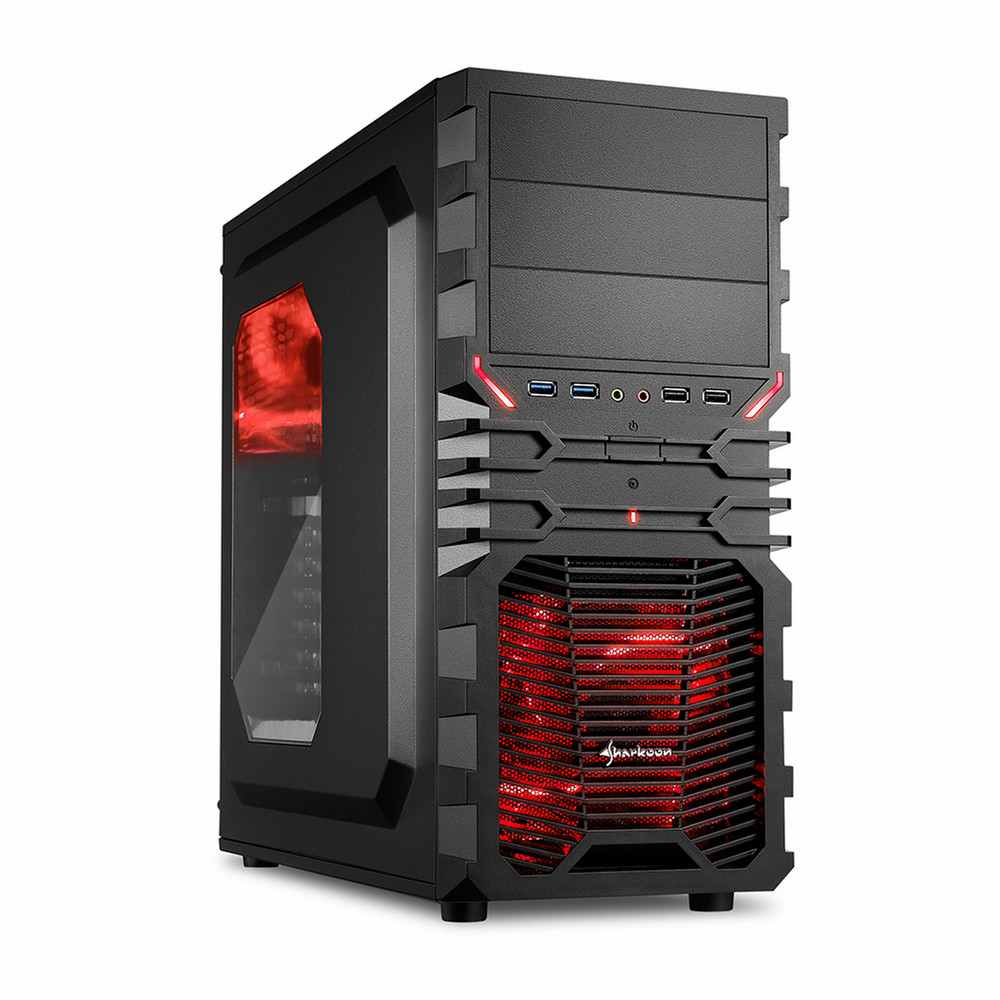

The VG4-W case stands out due to its versatile features at an attractive price. The ATX case is available in four different interior colors (black, green, blue or red). These are clearly visible through the acrylic side window. In the front, two USB 3.0 (internal 19-pin mainboard connector incl. USB 2.0 plug), two USB 2.0 and two audio connection options are provided.
<b>Generous space:</b>
Thanks to the provided side panels the VG4-W offers space for the hassle-free installation of tower coolers with a height of up to 16 cm. Graphics cards with a maximum length of up to 31/38.5 cm (after removing the SSD hard drive cage) can also be mounted. A total of up to seven expansion cards can be installed. The maximum length for power supplies is 25 cm; a suitable dust filter is pre-installed on the bottom. The VG4-W offers installation openings for a CPU cooler, two openings for optional water cooling as well as a comfortable cable management system.
<b>Fan configuration:</b>
A 120 mm LED fan provides with dust filter pre-installed in the front and a 120 mm LED fan also pre-installed in the rear panel.
<b>Front connections:</b>
Two USB 3.0 (internal 19-pin mainboard connector incl. USB 2.0 plug), two USB 2.0 as well as two audio plugs in the front offer quick access for connecting peripherals.
<b>Installation options for drives:</b>
The ATX case offers three 5.25"drive bays for optical drives (two of which are equipped with quick fasteners) or two 5.25" drive bays andan externally accessible 3.5” bay. Here, for example, a card reader can be quickly and easily installed. Internally, three 3.5” hard drives can be installed using the quick fasteners. In the second mounting frame can three 2.5” HDDs/SDDs be installed, in the bottom of the case there is space for an additional 2.5” HDD/SSD.
- ATX case.
- Mounting possibilities: 3x 5.25" drive bays (external) or 2x 5.25" drive bays + 1x 3.5" bay (external) + 3x 3.5" hard drive bays (internal) + 4x 2.5" SSDs/HDDs (internal).
- Front I/O: 2x USB 3.0 (internal 19-pin mainboard connector incl. USB 2.0 plug), two USB 2.0 as well as two audio plugs.
- Interior finish.
- 7 slots for expansion cards.
- Quick fasteners for two optical drives and three 3.5" hard drives.
- Installation opening for CPU cooler.
- 2 openings for water cooling.
- Cable management system.
- Acrylic side panel.
