性能
| 模拟信号系统 |
NTSC, NTSC 3.58, NTSC 4.43, PAL, PAL 60, SECAM |
| 集成电视调谐器 |
N |
| HDCP |
Y |
| 屏幕显示 |
Y |
其他功能
| 内置超低音音响 |
N |
| AC（电源）输入 |
Y |
| 线缆锁插槽 |
N |
| 可旋转 |
N |
| 内置摄像头 |
N |
| 功耗（最大） |
680 W |
| 独立h/v同步 |
Y |
| 可视尺寸，横向 |
1993 mm |
| 可视尺寸，纵向 |
1121 mm |
| 枢轴 |
N |
| 高度调整 |
N |
端口 & 界面
| DVI-I接口数量 |
1 |
| DisplayPort 数量 |
2 |
| PC音频 |
Y |
| 以太网的数据传输率 |
10, 100 Mbit/s |
| HDMI端口数量 |
2 |
| DVI-D接口数量 |
1 |
设计
| 倾斜调整 |
N |
| 边框宽度（顶部） |
35 mm |
| 边框宽度（底部） |
35 mm |
另外
| 开/关切换钮 |
Y |
| 以太网路(RJ-45)连接接口数量 |
1 |
| 以太网连接器 |
Y |
| 能源效率等级 |
Unspecified |
228.6 cm (90 ") , 1920 x 1080, 6ms, 700 cd/m2, 4000:1 / 1M:1, 16:9, 2 x 10W RMS, 165.3 lbs, Black
Go Big! With its magnificent 90" class diagonal screen size, 24/7 reliability and energy efficient full-array LED backlight, the PN-R903 is designed to meet the rigors of most any commercial display or digital signage application while captivating your audience. Add to this Sharp’s UV2A photo alignment technology, local dimming technology, full 1920 x 1080 HD resolution, and optional media player, you have one of the largest, highest performing and most flexible displays in the industry. For versatility, performance and value, there’s never been a better time to think BIG – and think Sharp.

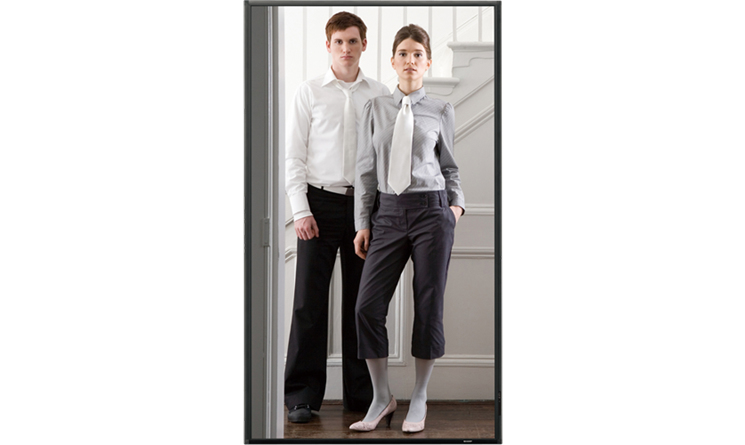

*Screen image simulated.
Features
- Magnificent 90" Class (90-1/16" diagonal) Screen Size - combined with Sharp UV2A photo alignment technology help create brilliant color images with maximum size and impact.
- Full Array LED Backlight - positions energy-efficient white LEDs evenly across the entire panel for uniform brightness, enhanced reliability and greater legibility of text.
- Local Dimming Technology - offers outstanding black levels, amazing contrast, and superb energy efficiency with a contrast ratio of up to 1,000,000:1 with local dimming set to high.
- Brilliant, Big Screen Images for Digital Signage - for use in public areas such as trade show exhibit halls, hotel lobbies and conference areas, airport corridors and retail locations.
- Engineered for 24/7 Commercial Use - provides the reliability and durability you need for virtually any business.
- Full 1920 x 1080 (1080p) Resolution - from analog RGB, digital RGB and HDTV video sources.
- High Brightness (700 cd/m2) and Contrast Ratio (4,000:1 – local dimming off)
- Low-profile Design with Cabinet Depth of only 4-13/16"
- 3-Year On-Site Limited Warranty - covers parts, labor and backlight, in both landscape and portrait modes.
- Built-in 10 Watt per Channel Stereo Speakers - eliminates need for an external audio system for many installations.
- Extensive Interface Capability - includes as standard interfaces HDMI input x2, D-Sub 15-pin RGB input, RS-232C input/output, DVI-I input, DVI-D output, DisplayPort input/output, stereo audio (1/8”) input x 2, stereo audio (1/8”) output, and RJ-45 LAN display control.
- Optional Media Player PC - easily attaches to rear of display. Permits all-in-one digital signage display package.
