联网
| 布线技术 |
10/100/1000Base-T(X) |
| 以太网的数据传输率 |
10, 100, 1000 Mbit/s |
| 无线局域网连接 |
N |
处理器
| 处理器安装数量 |
1 |
| 处理器高速缓存 |
3 MB |
| 处理器光刻 |
32 nm |
| 散热设计功耗 (TDP) |
35 W |
| 处理器代号（codename） |
Sandy Bridge |
| 处理器高速缓存类型 |
Smart Cache |
| 处理器支持显存频率 |
1066 MHz |
| 处理器支持内存带宽（最大值） |
17 GB/s |
| 处理器支持内存通道 |
Dual |
| 总线频率 |
23 |
| 处理器运行模式 |
64-bit |
| 处理器插槽 |
LGA 1155 (Socket H2) |
| 步进 |
Q0 |
| 处理器线程数 |
2 |
| 核心的处理器数量 |
2 |
| PCI Express插槽版本 |
2.0 |
| 处理器频率 |
2.3 GHz |
| 处理器支持最大内存 |
32 GB |
| 外壳温度 |
65 °C |
| 处理器支持内存类型 |
DDR3-SDRAM |
| 总线类型 |
DMI |
扩展槽
| Mini PCI Express插槽 |
1 |
| PCI Express x16 插槽 |
1 |
| PCI Express × 1插槽 |
1 |
其他功能
| 外部驱动器托架 |
1 x 5.25" |
| 内部驱动器托架 |
2 x 3.5" |
| 耳机连接插孔 |
3.5 mm |
| 图形适配器系列 |
Intel |
| 以太网接口类型 |
Gigabit Ethernet |
| 处理器生产厂商 |
Intel |
| 麦克风连接 |
3.5 mm |
| Mac兼容性 |
N |
| 网路功能 |
Gigabit Ethernet |
| USB 连接器形状 |
USB Type-A |
| 冷却方式 |
Active |
| 电源类型 |
AC |
端口 & 界面
| DVI端口 |
Y |
| Line-in |
Y |
| Line-out |
Y |
| USB2.0端口的数量 |
8 |
| 耳机输出端口 |
1 |
| S/PDIF输出接口 |
Y |
| 麦克风/音频输入插孔 |
Y |
| USB 3.0（第 1代3.1）Type-A 端口数量 |
2 |
图像
| 板载图形适配器 |
Y |
| 板载图形适配器系列 |
Intel HD Graphics |
| 独立显卡类型 |
Not available |
| 板载图形适配器基本频率 |
650 MHz |
| 板载图形适配器型号 |
Intel HD Graphics |
| 板载图形适配器动态频率(最大值) |
1100 MHz |
| 板载图形适配器支持的显示器数量 |
2 |
处理器的特殊功能
| 英特尔® 快速内存访问 |
Y |
| 英特尔® Flex内存访问 |
Y |
| 执行禁止位 |
Y |
| 闲置状态 |
Y |
| 热监测技术 |
Y |
| 英特尔®可信执行技术 |
N |
| 处理器封装尺寸 |
37.5 x 37.5 mm |
| Processor ARK ID |
53484 |
| 处理器代码 |
SR05U |
| 英特尔®快速同步视频技术 |
N |
| 英特尔® 内线™ |
N |
| 英特尔®64 |
Y |
| 英特尔® 双显示功能技术 |
Y |
| CPU配置（最大） |
1 |
| 可选用的嵌入式选项 |
N |
| 英特尔®直接输入/输出硬件辅助虚拟化技术 (Intel® VT-d) |
N |
| 英特尔®超线程技术 |
N |
| 英特尔®Turbo Boost技术 |
N |
| 英特尔® 增强暂停状态 |
Y |
| 英特尔®vPro™ 技术 |
N |
| 英特尔®VT-x的扩展页表（EPT） |
Y |
| 英特尔® FDI技术 |
Y |
| 增强型英特尔®SpeedStep动态节能技术 |
Y |
| 英特尔®无线显示(WiDi)技术 |
N |
| 英特尔®清晰视频高清技术 |
N |
| 支持指令集 |
SSE4.1, SSE4.2 |
性能
| 音频输出通道数量 |
5.1 channels |
| 音频系统 |
HD |
| 产品类型 |
PC |
内存参数
| 内存时钟速度 |
1333 MHz |
| 内置存储器 |
2 GB |
光盘驱动器
| 光盘驱动器数量 |
1 |
| 光驱类型 |
DVD Super Multi |
存储介质
| 硬盘容量 |
320 GB |
| 安装的硬盘驱动器的数量 |
1 |
| 总存储容量 |
320 GB |
| 儲存裝置 |
HDD |
| 硬盘接口 |
Serial ATA |
能量控制
| 电源输入电压 |
100 - 240 V |
| 电源 |
250 W |
环境条件
| 相对湿度 |
10 - 90% |
| 运行湿度范围(H-H) |
0 - 35% |
重量和尺寸
| 深度 |
325 mm |
| 宽度 |
215 mm |
| 高度 |
190 mm |
另外
| InTru™3D技术 |
N |
| 主板晶片 |
Intel H61 Express |
| 产品色彩 |
Black |
| 系统总线 |
5 GT/s |
| 以太网连接器 |
Y |
| 英特尔®AES新指令 |
N |
| 以太网路(RJ-45)连接接口数量 |
1 |
Intel Pentium Processor G630T (3M Cache, 2.30 GHz), Intel H61, 2GB DDR3 1333MHz, 320GB SATA HDD, DVD Super Multi, Gigabit Ethernet, Windows 7 Professional 64-bit

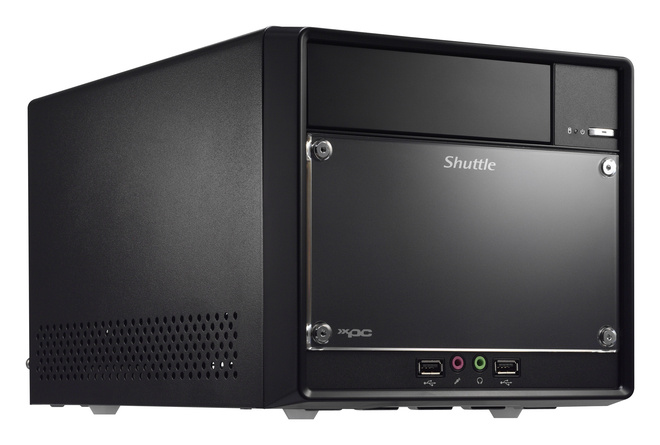

Highly-efficient entry-level Mini-PC: Shuttle XPC R4 6100BA
The Shuttle XPC R4 6100BA comes with an energy-efficient Intel Pentium G630T processor (max. 35W) and is based on socket LGA1155. The reliable heatpipe cooling system ensures the PC runs at a very low noise level. With Windows 7 Professional 64 Bit operating system pre-installed and innovative features like USB 3.0, the R4 6100BA is the optimal choice for the office and home environment. This system also features two DVI video outputs providing Dual View technology. This helps improve on productivity by allowing to spread multiple windows across two monitors while working with them simultaneously. The front panel can be customized by adding individual design motifs for the maximum individuality possible.
6-channel audio
With the inbuilt sound card you can connect up to six speakers. Get your own personal surround-sound experience at home.
Intelligent cooling
Shuttle's patented Heatpipe Cooling technology with variable speed control automatically ensures maximum system stability and quiet operation in this aluminium Shuttle Mini-PC. Instead of swirling around the chassis, as is the case with conventional solutions, the warm air is specifically transferred out of the chassis.
Optimal air flow
Warm air is transported out of the chassis by means of cleverly arranged components, which enables a large number of parts to be cooled simultaneously in the air flow. At no time can heat build up and adversely affect the stability of the system.
Communication in the fast lane
The integrated gigabit LAN chipset opens up completely new possibilities for communication with no restriction on the speed of data transfer. Say goodbye to information bottlenecks, whether in the company network or for home Internet access.
PCI-Express X1 for modern add-on cards
The successor of the PCI slot offers higher data transfer rates and future compatibility. The choice of PCI-E-X1 expansion cards continues to grow.
PCI Express technology
A fast X16-PCI-E slot enables the use of modern 3D graphics cards and other expansion cards that have to transfer huge amounts of data at ultra-rapid speeds.
Almost limitless memory
In this age of terabyte hard disks, four internal ports with SATA2 offer almost unlimited hard disk space. A major benefit here is that the Serial-ATA cables interfere far less with the air flow than PATA-Standard cables.
Generous supply of USB ports
You can never have enough of those versatile USB ports. This Shuttle Mini-PC offers 10 ports, with further ports for internal expansions located on the mainboard.
Pre-assembled cabling saves time
The most important power and data cables are already routed and just have to inserted into the relevant components. This saves valuable time when setting up the system.
Compatible with Microsoft Windows 7
This Shuttle Mini-PC is ideally prepared for the new Microsoft Windows 7 operating system. Updating to the new version couldn't be simpler.
Shuttle opts for lightweight aluminium
The use of aluminium in Mini-PCs has significant advantages. Aluminium has an ideal balance between weight and strength, does not rust and is not sensitive to magnetism. Its thermal conductivity is four times higher than steel. All in all, it's a perfect material for Mini-PCs.
Digital monitor output
Large TFT monitors work with extremely high resolutions. Digital technology is essential for displaying video signals in excellent quality and with no loss of performance. This Mini-PC offers a high-quality DVI monitor output.
Space for two hard disks
This Mini-PC chassis provides plenty of space for two 3.5" HDDs that provide many Terabytes of memory. The generous ventilation between the drives ensures there is no build-up of heat.
Intel chipset inside
Play it safe with the reliable chipsets from the world's largest chip manufacturer. Intel chipsets have proven themselves over many years, have been presented with awards by the trade press and offer the best possible degree of compatibility.
The fastest connection to external peripheral devices available to date
The USB 3.0 connectors of this model allow for data transfer of up to 5 Gbit/s (625 MB/s). This enables external devices such as USB hard disks to be connected and run at nearly the same speed as their internal siblings. USB 3.0 is downward compatible so that also devices of previous USB generations can be hooked up.
