能量控制
| 电流 |
2 A |
| 外接电源转接器 |
Y |
| 工作电压 |
5 V |
重量和尺寸
| 接收器尺寸(宽 x 深 x 高) |
115 x 27.9 x 90.9 mm |
| 接收器的重量 |
390 g |
端口 & 界面
| 蓝牙 |
N |
| RS-232 输出端口 |
1 |
| RJ-45输入端口 |
3 |
| DC-IN插口 |
Y |
技术细节
| 类型 |
AV repeater |
| 无线局域网连接 |
N |
| 可支持的电缆类型 |
Cat5e, Cat6 |

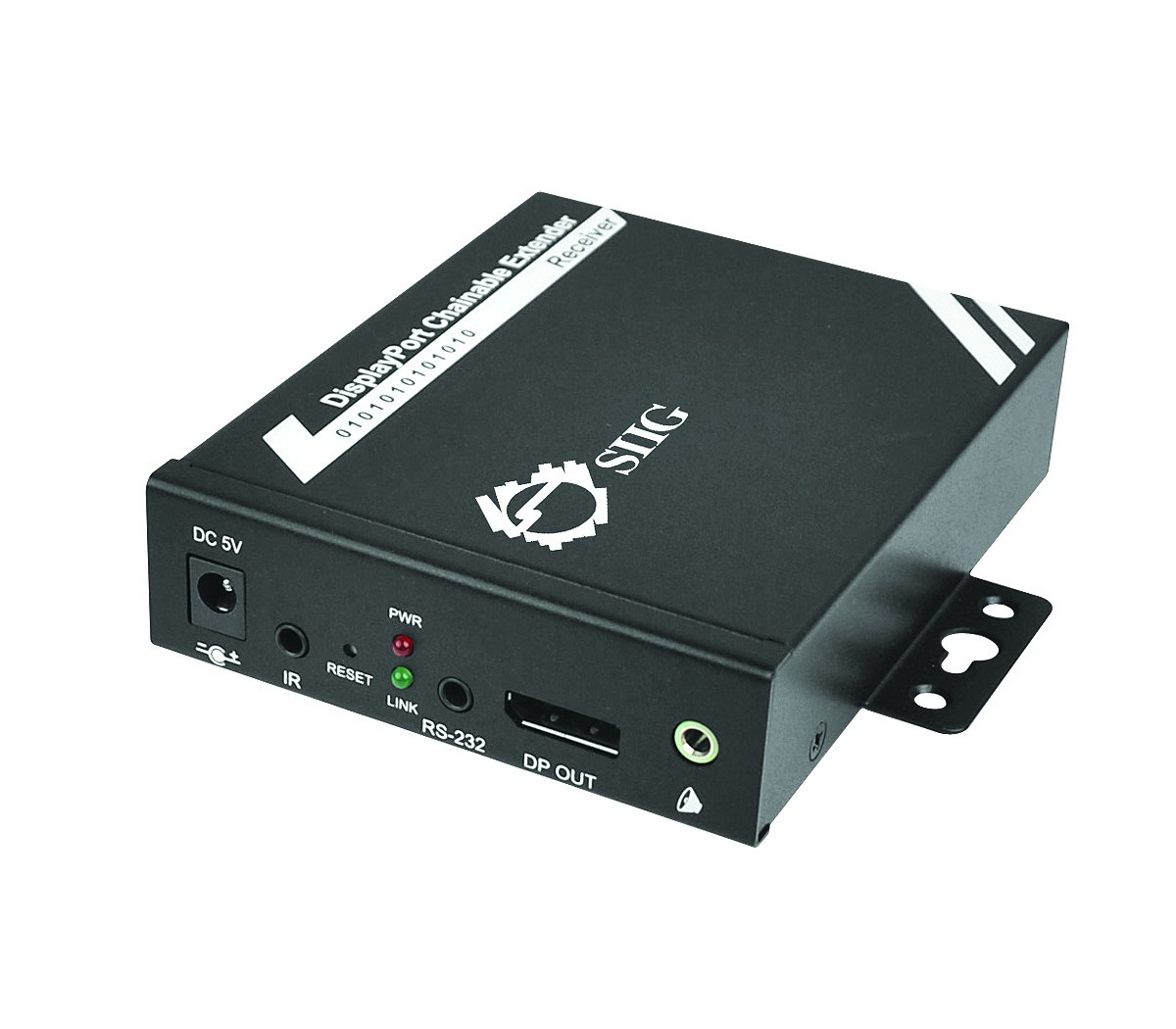

Repeater, DisplayPort to CAT5e Daisy Chain HD w/ RS-232 & IR
SIIG’s DisplayPort to CAT5e Daisy Chain HD Extender Kit with RS-232 & IR - Repeater is designed to receive and extend DisplayPort signal from a transmitter to a display at greater distance using economical CAT5/6 cable. This repeater offers RS-232 communication and IR control to execute commands conveniently. And it enables cascade connection to allow for an extensive network of displays setup. Fully HD 1080p resolution is supported, no software or driver is required to install, and the built-in mounting mechanism makes integration convenient and tidy. It is a cost-effective DisplayPort to CAT5e extender solution to extend and broadcast high quality video and audio signal to the remote display(s) utilizing inexpensive network cable.
