技术细节
| 带宽 |
6.75 Gbit/s |
| 音频系统 |
Multichannel |
| 可支持的电缆类型 |
Cat5, Cat5e, Cat6 |
| 最大传输距离 |
61 m |
端口 & 界面
| RJ-45输入端口 |
1 |
| RJ-45输出端口 |
1 |
| Number of HDMI outputs |
1 |
| HDMI输入 |
1 |
| DC-IN插口 |
Y |
能量控制
| 外接电源转接器 |
Y |
| 电流 |
2 A |
| 工作电压 |
5 V |

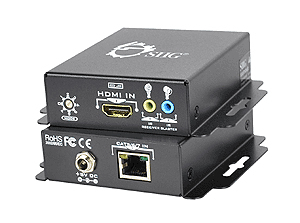

CE-H20M11-S1, HDMI Extender over Single CAT5/6 with 3DTV & Bi-Directional IR Support
Overview
SIIG’s HDMI Extender over Single CAT5/6 with 3DTV & Bi-Directional IR Support is designed to boost audio/video transmission from HDMI source to HDMI display device at greater distance over a cost-effective CAT5e/6 cable. It extends transmission distances of up to 60m (200ft) @1080i, 40m (130ft) @1080p with 24-bit, and 20m (65ft) @ 1080p with 36-bit HDTV formats. In addition, this HDMI extender features adjustable 8-level equalization control to minimize cable skew, pure unaltered uncompressed 7.1ch or stereo digital audio and HDMI through Cat5/5e/6 cable transmission, and DTS-HD Master Audio and Dolby TrueHD Audio support.
The HDMI Extender over Single CAT5/6 with 3DTV & Bi-Directional IR Support is equipped with bi-directional IR pass-through path and supports full frequency IR signal ranging from 20kHz to 60kHz. It allow users to boost IR control distance up to 100m (330 ft) and makes IR control possible through the single Cat.5/5e/6 cable. This cost-effective HDMI Extender solution enables you to transmit high quality video and audio from DVD players, Blu-ray Disc player, PS3, PC, and many more to a distant display device at minimal cost.
The HDMI Extender over Single CAT5/6 with 3DTV & Bi-Directional IR Support is fully compliant with industry standards including HDMI 1.4a, HDCP 1.1, RoHS, and is backed by SIIG’s limited 3-year warranty.
